UKU WiFi control system is an excellent option for saunas in areas with WiFi coverage, such as homes, offices, or accommodations. With this system, you can heat your sauna using the control panel on-site or from your mobile phone, no matter where you are at the moment. HUUM app allows you to easily set the start and end time of heating, the target temperature, and check the current temperature of the sauna. Plus, you’ll receive a notification when the sauna is warm and ready to use. You can also connect the sauna lighting, ventilation, and steamer to the control system for added convenience. Overheating protection and a child lock take care of the safety of your sauna.

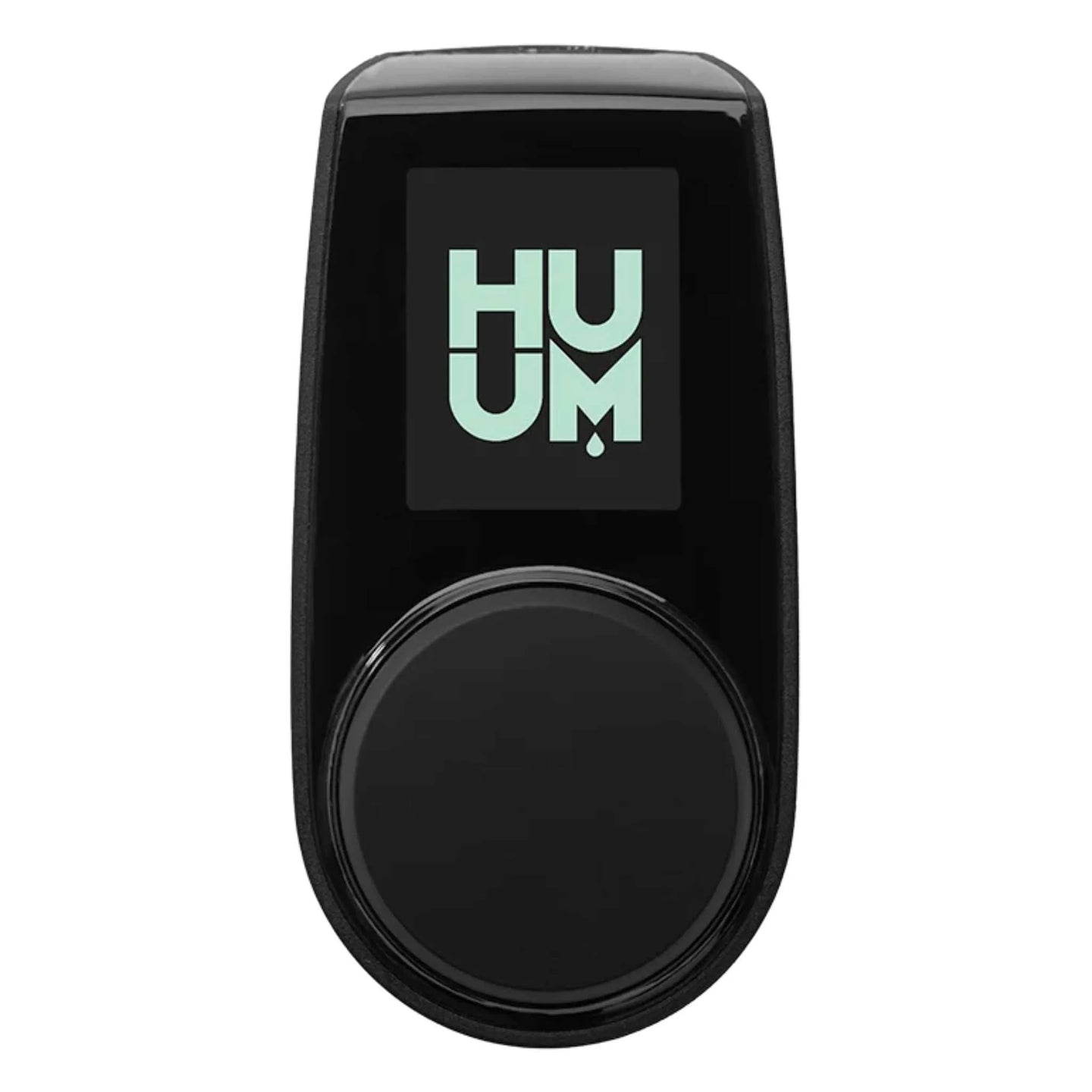

UKU Local sauna controller makes sauna heating easy and comfortable. UKU comes with several safety and extra features for a pleasant sauna experience. It can be used with different manufacturers’ heaters.
- For heaters up to 18kW
- Connectable to lights/ventilation and steamer
- Overheating protection
- Timer
- Child safety lock
Further features:
Temperatures: 40-110 ºC / 104-230°F
For stoves up to: 18 kW
Supply voltage: 40A, 240 V 2~
Heating period: 3h; 6h; 9h; 12h
The set includes:
- Control console (4.1 x 2.2 x 0.9 in / 105 x 55 x 22 mm)
- Control console cable (118 in / 3 m; 4×28 AWG)
- Main module ( 5.6 x 3.5 x 2.3 in / 142 x 90 x 58 mm)
- Temperature sensor
- Door sensor
- Temperature/door sensor cable (197+197 in / 5+5 m; 2×28 AWG)
*The UKU controller is NOT IP-certified and cannot be placed outdoors, unless installed into an IP-rated box. The controller can be fitted inside the sauna given it is placed max. 800 mm height from floor level. The controller should not be installed higher than this if inside the sauna.
About HUUM
HUUM is the leading manufacturer when it comes to unique designs and technology. HUUM has been awarded for their innovative and stylish sauna products. In 2015, the DROP sauna heater won the Red Dot Award for Product Design. The inspiration for the HUUM products come from nature. Combined with age-old sauna knowledge, smart technology and modern Nordic design, the HUUM heaters are a stylish and robust choice for any sauna. The amount of stones in HUUM heaters are optimized for the perfect, soft steam experience. The innovative HUUM heaters are easy to use and have all been UK CA- certified.
HUUM Cable Specification
|
Power input to UKU Main Module
|
Power output between UKU and Huum Heater
|
|
SWA (steel wire armoured)
|
SWA
|
SiHF-J
|
SiHF-J
|
|
Single Phase 230v
|
Three Phase 400v
|
Single Phase 230v
|
Three Phase 400v
|
|
Power (kW)
|
mm2
|
mm2
|
mm2
|
mm2
|
|
3.5
|
3 x 2.5
|
-
|
3 x 2.5
|
-
|
|
4.5
|
3 x 4
|
5 x 1.5
|
7 x 1.5
|
5 x 1.5
|
|
6
|
3 x 6
|
5 x 1.5
|
7 x 2.5
|
5 x 1.5
|
|
9
|
3 x 10
|
5 x 2.5
|
7 x 2.5
|
5 x 2.5
|
|
10.5
|
3 x 10
|
5 x 2.5
|
7 x 2.5
|
5 x 2.5
|
|
12
|
-
|
5 x 4
|
-
|
5 x 4
|
|
15
|
-
|
5 x 4
|
-
|
5 x 4
|
|
18
|
-
|
5 x 6
|
-
|
5 x 6
|
Technical Specification
|
Target temperatures
|
+40-110 ºC / 104-230°F
|
|
Maximum heater power
|
18kW
|
|
Supply voltage
|
40A, 240V 2~
|
|
Heating period
|
3h; 6h; 9h; 12h
|
|
Dimensions
|
|
Control console (LxWxD)
|
105 x 55 x 22mm
|
|
Control console cable
|
3m; 4x28 AWG
|
|
Main module (LxWxD)
|
142 x 90 x 58mm
|
|
Temperature/door sensor cable
|
5 + 5m; 2x28 AWG
|
Downloads:
Version 4.2 Manual
Version 4.1 Manual
HUUM Drop Single Phase Connection
HUUM Warranty Terms
