Sauna & Infrared Cabin Safety Emergency Shut-Off Button
The EOS Emergency Button is an essential safety accessory designed for sauna and infrared cabin installations. Engineered to provide immediate emergency shutdown capability, this button allows users to quickly disconnect the sauna heater through the overheating safety circuit while simultaneously activating an optional alarm or signaling device. Featuring two independent switching circuits, the emergency button can perform multiple safety actions with a single press, helping improve response times and enhance user protection in both residential and commercial sauna environments.
Built with a durable, extra-long housing for secure installation, the EOS Emergency Button offers reliable operation in high-temperature sauna conditions. Available as a standalone component or as a complete set with a premium maple wood cover plate and installation kit, it provides a professional safety solution that integrates seamlessly into modern sauna designs.
Key Features
-
Emergency Heater Shut-Off: Instantly disconnects sauna heater operation through the safety circuit.
-
Dual Switching Circuits: One normally open and one normally closed contact allow two separate actions from a single button press.
-
Alarm Integration Capability: Can activate an optional audible or visual alarm for emergency notification.
-
Enhanced Sauna Safety: Ideal for commercial and supervised sauna installations requiring emergency controls.
-
Durable Construction: Designed for reliable performance in demanding sauna and infrared cabin environments.
-

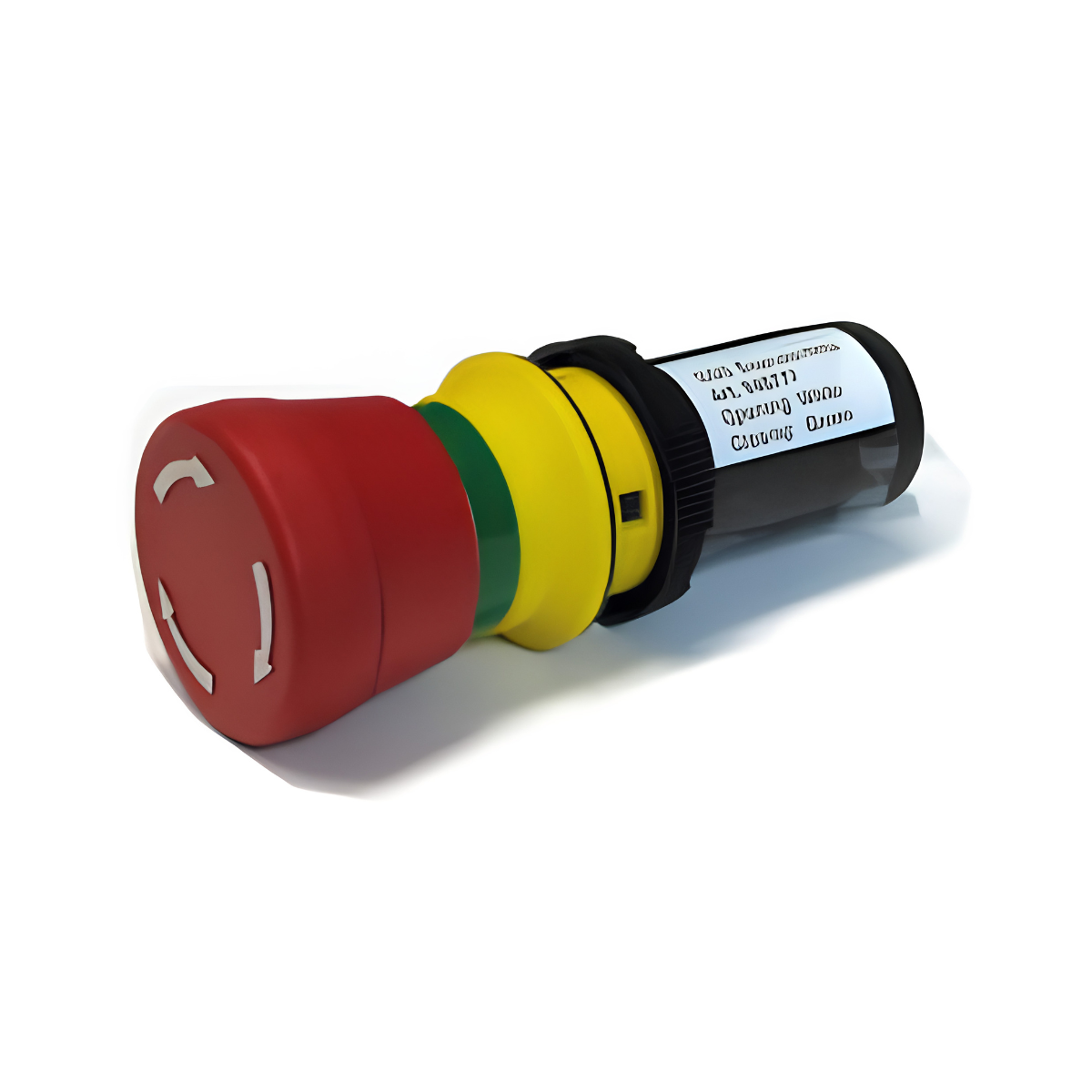

Extra-Long Housing: Simplifies installation and provides secure mounting.
-

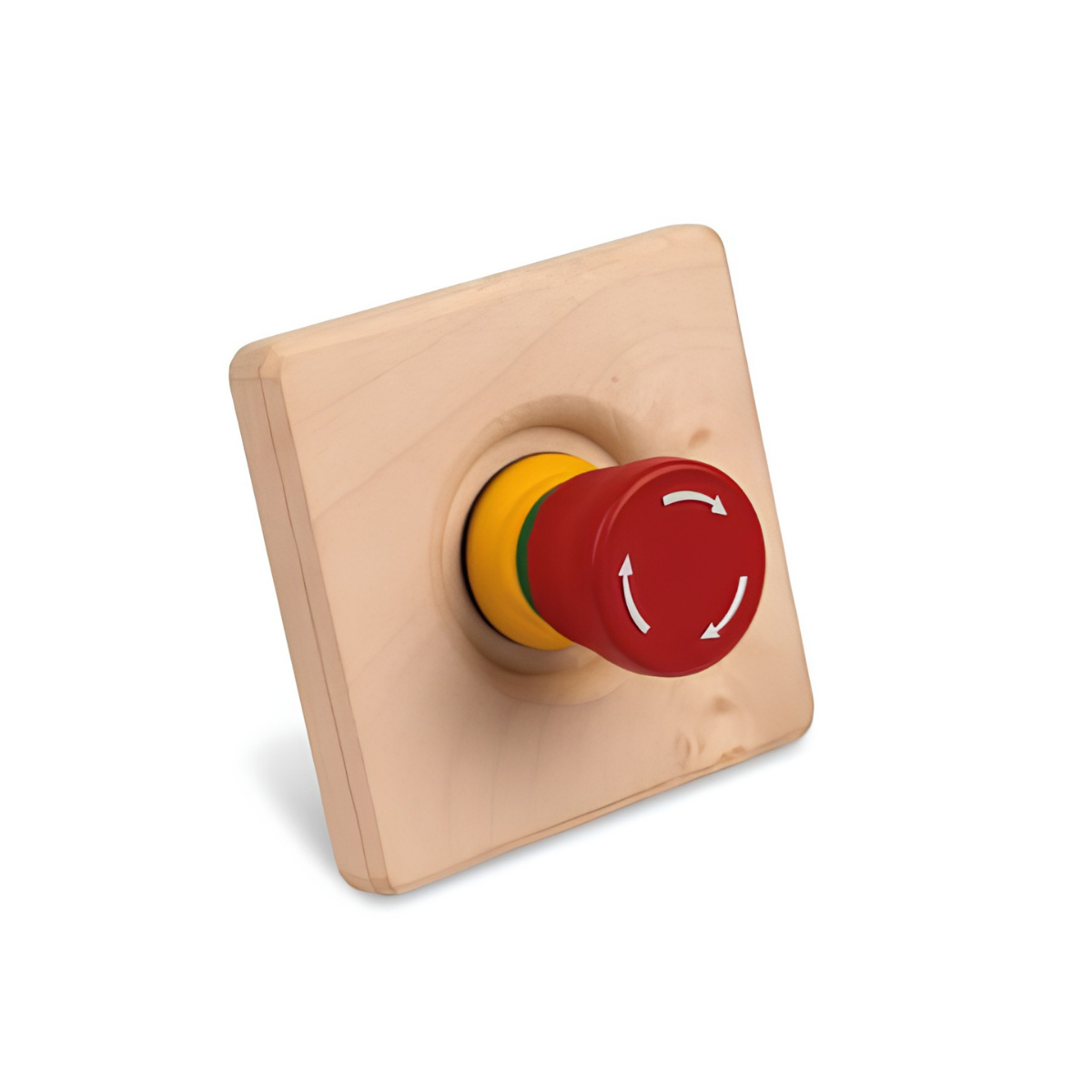

Optional Maple Cover Plate: Available with a premium wood cover for a refined sauna appearance.
-
IP65 Protection Rating: Protected against dust and water ingress on the visible installed portion.
-
Suitable for Sauna & Infrared Cabins: Versatile safety solution for multiple wellness environments.
What's Included
- EOS Emergency Button
- Connection Leads
Specifications
| Specification |
Details |
| Product Name |
EOS Emergency Button |
| Product Type |
Emergency Shut-Off Safety Button |
| Application |
Sauna & Infrared Cabins |
| Switching Circuits |
2 Contact Pairs |
| Contact Configuration |
1 Normally Open (NO), 1 Normally Closed (NC) |
| Connection Type |
Crimped Wire Contacts |
| Isolation Voltage |
250 V AC/DC |
| Maximum AC Current |
5 A |
| Maximum DC Current |
2.5 A |
| Ambient Temperature Rating |
Up to 158°F (+70°C) |
| Protection Rating |
IP65 (Visible Portion Installed) |
| Installation Depth |
3.3" (85 mm) |
| Cover Plate Dimensions (H × W × D) |
2.8" × 2.8" × 0.5" |
| Cover Plate Dimensions (Metric) |
70 × 70 × 12 mm |
Optional Version Includes:
| Included Item |
Description |
| Maple Wood Cover Plate |
Decorative sauna-grade wood cover |
| Installation Kit |
Mounting hardware and accessories |
Installation Notes
- Installation should be performed by a qualified electrician.
- Designed for connection to sauna heater safety circuits.
- Dual contact design allows simultaneous heater shutdown and alarm activation.
- Suitable for both sauna cabins and infrared cabins.
- Ensure installation location remains easily accessible during operation.
- Minimum installation depth required: 3.3" (85 mm).
- Visible installed portion provides IP65-rated protection.
- Compatible with optional signaling equipment for remote staff notification.
