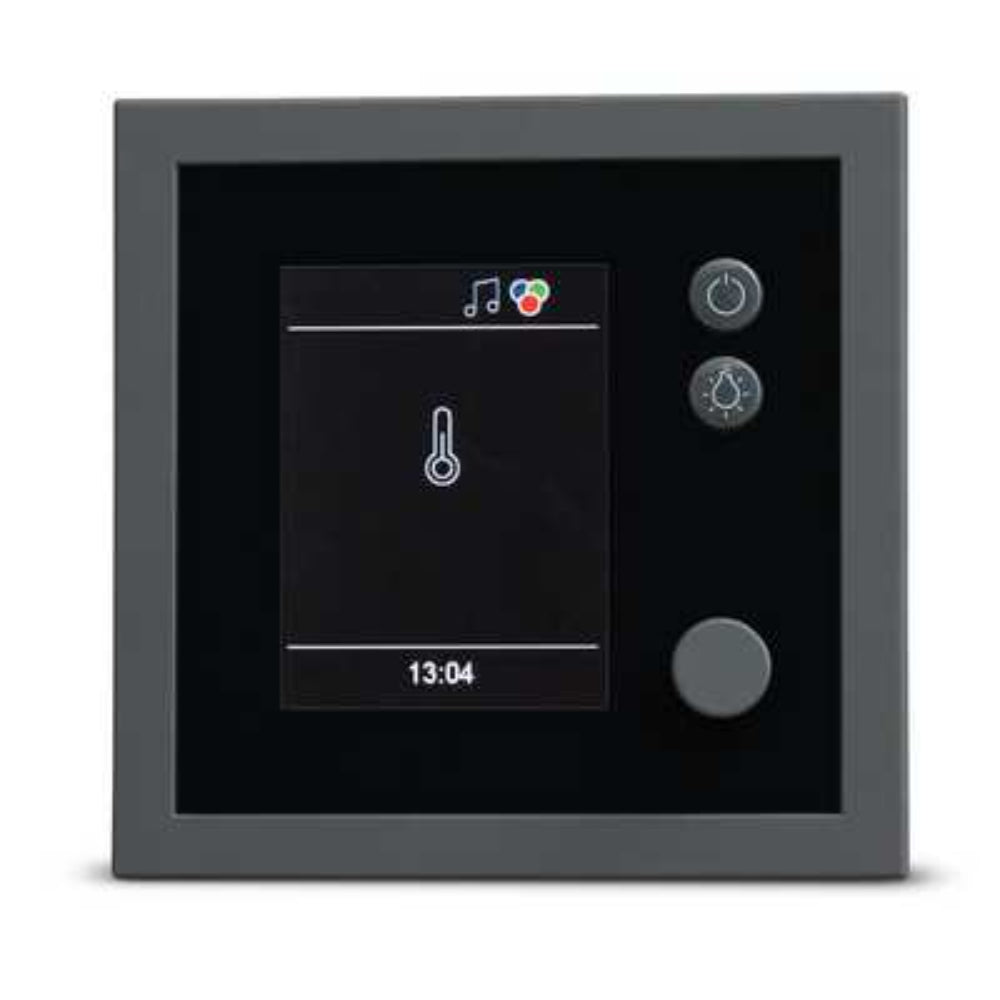

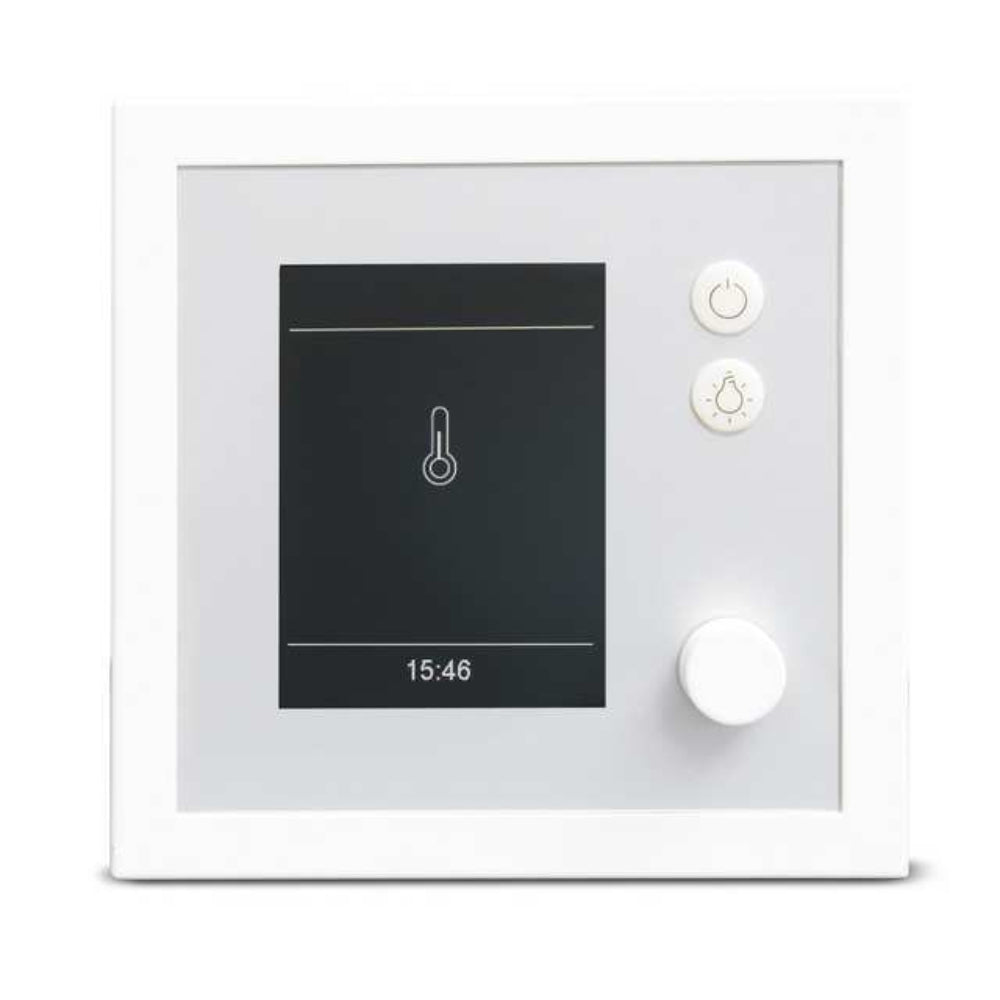

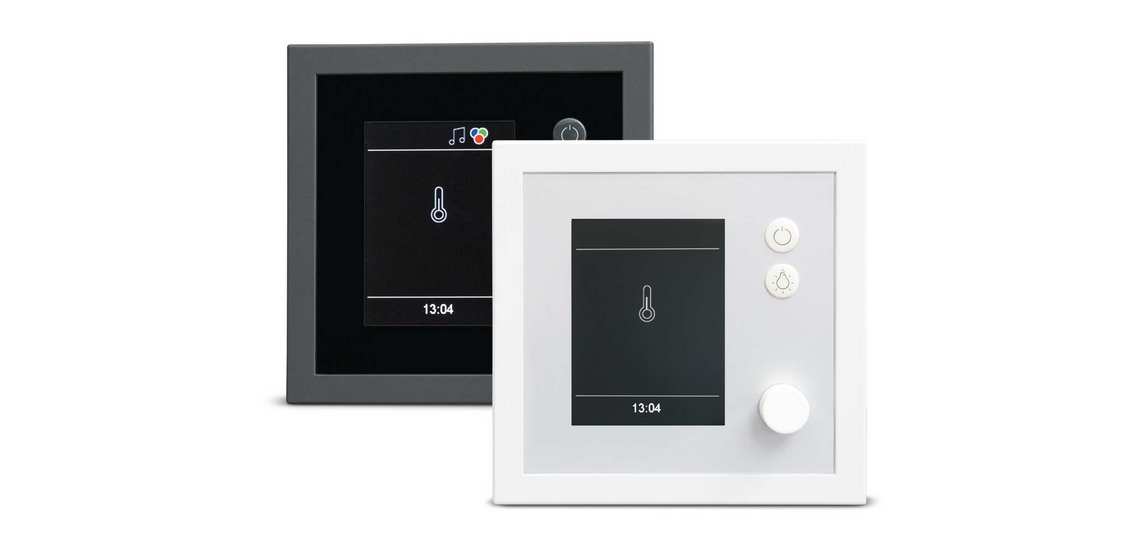

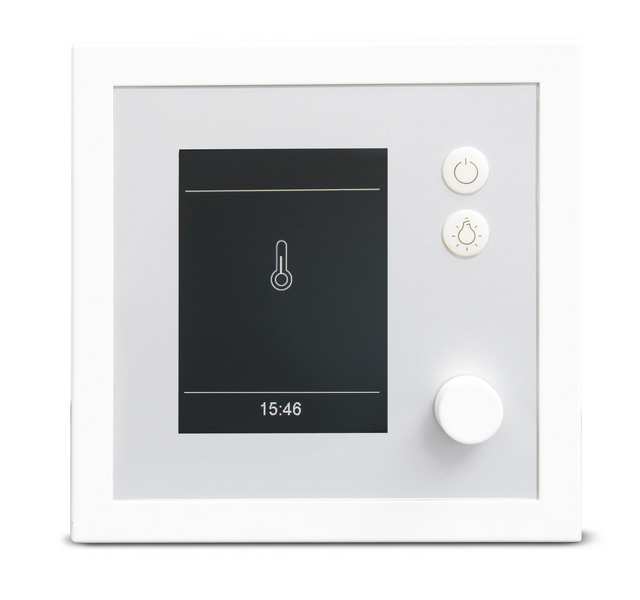

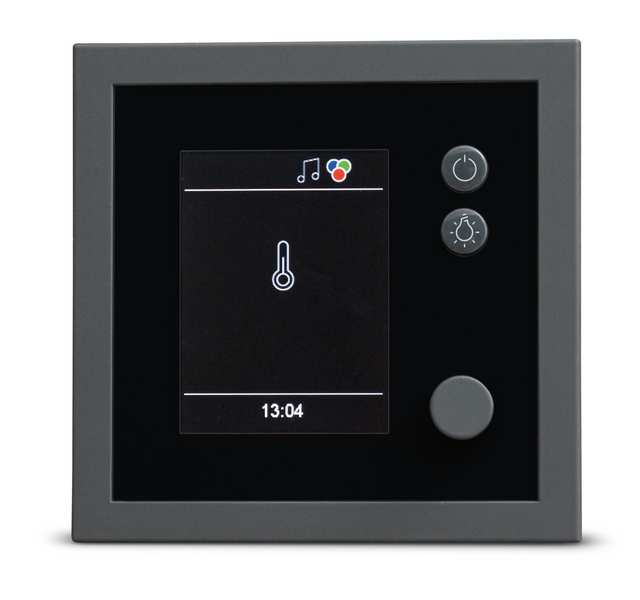

EOS EmoTec D Sauna Control Unit
The EOS EmoTec D Sauna Control Unit is a premium digital control system engineered for traditional dry sauna operation in both residential and commercial environments. Combining advanced technology with intuitive operation, the EmoTec D delivers precise temperature management, customizable settings, and reliable performance for demanding sauna installations.
Featuring a compact control panel with a vibrant TFT color display, the EmoTec D offers easy navigation through multilingual menus using an innovative jog-dial interface. The system supports both flush-mounted and surface-mounted installation and can be positioned up to 328 feet away from the sauna, providing exceptional flexibility during installation.
Designed for use with a separate power box and digital temperature sensor, the EmoTec D provides accurate temperature control, integrated lighting and ventilation outputs, PIN-protected settings, and firmware update capability. Whether installed in a luxury home sauna or a commercial wellness facility, the EmoTec D delivers professional-grade control with unmatched convenience and reliability.
Key Features
-
Premium Sauna Control Technology: Designed for high-end residential and commercial dry sauna installations.
-
Full-Color TFT Display: Bright, easy-to-read screen provides intuitive control and real-time sauna monitoring.
-
Innovative Jog-Dial Operation: Simple rotary controller enables quick and user-friendly menu navigation.
-
Precise Temperature Control: Adjustable temperature range from 86°F to 194°F (30°C to 90°C).
-
Remote Installation Capability: Control panel can be installed up to 328 ft (100 m) from the sauna.
-
Integrated Light & Fan Control: Dedicated outputs for sauna lighting and ventilation systems.
-
Multilingual Interface: Supports 19 languages for convenient operation.
-
PIN-Code Security: Display lock, holiday mode, and protected service settings enhance security and management.
-
Firmware Update Support: Easily update system software via Micro SD card.
-
Commercial-Grade Reliability: Built to meet the demands of professional wellness facilities and luxury home saunas.
What's Included
- EOS EmoTec D Control Panel
- Digital Temperature Sensor
- High-Limit Safety Fuse Sensor
- Installation Hardware
- Installation Manual
Note: Power box is required but sold separately.
Specifications
| Specification |
Details |
| Product Name |
EOS EmoTec D Sauna Control Unit |
| Product Type |
Digital Sauna Control Unit |
| Sauna Type |
Dry Finnish Sauna |
| Display Type |
TFT Color Display |
| Control Method |
Jog-Dial Rotary Controller |
| Installation Type |
Flush Mount or Surface Mount |
| Temperature Range |
86°F – 194°F (30°C – 90°C) |
| Languages Supported |
19 Languages |
| Maximum Control Panel Distance |
328 ft (100 m) |
| Cabin Light Output |
Max. 100 W |
| Fan Output |
Max. 150 W |
| Sensor Type |
Digital Temperature Sensor with Safety Limiter |
| Firmware Updates |
Via Micro SD Card |
| Holiday Home Mode |
Yes |
| PIN Code Protection |
Yes |
| Screen Saver Mode |
Yes |
| Sleep Mode |
Yes |
| Heating Time Limit |
1 Hour (USA Version) |
| Color Options |
Black, White |
Dimensions Table
| Component |
Dimensions |
| Control Panel (H × W × D) |
5" × 5.1" × 1" |
| Control Panel (Metric) |
127 × 130 × 25 mm |

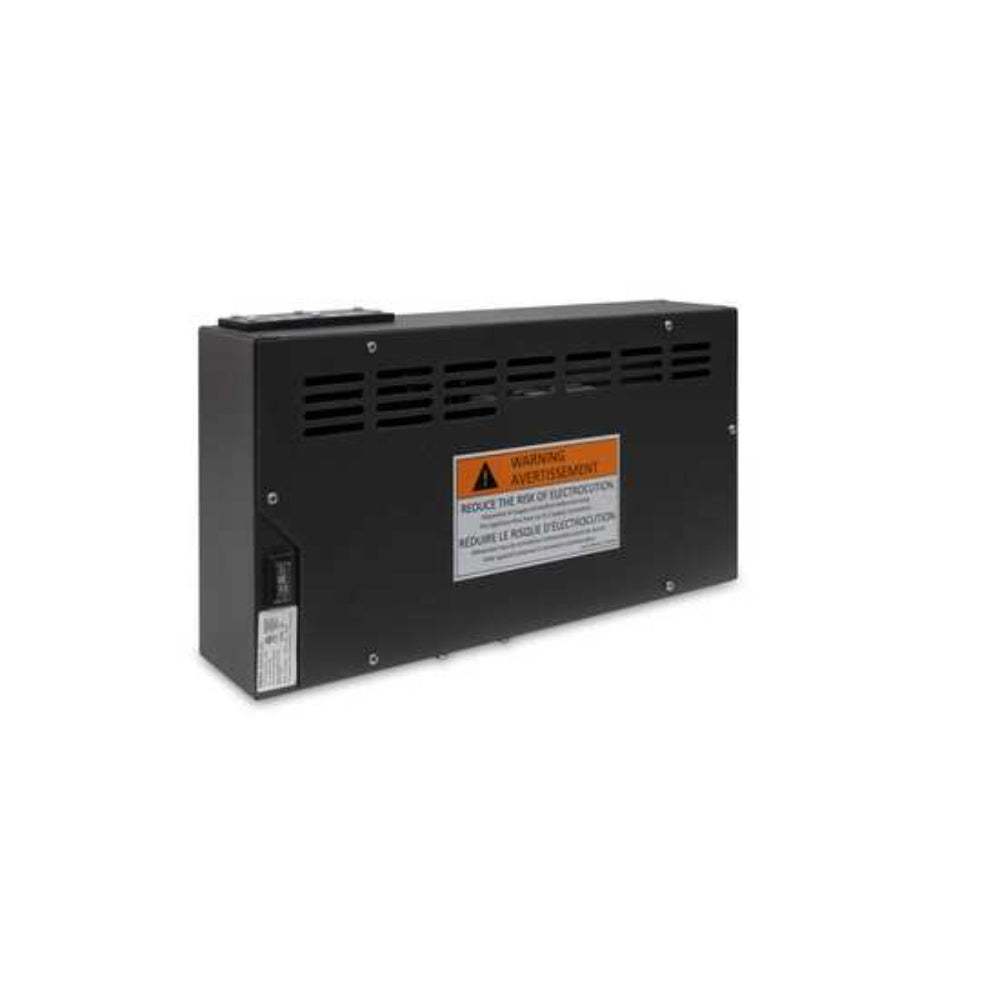

| Power Box (H × W × D) |
9.8" × 19" × 3.9" |
| Power Box (Metric) |
250 × 485 × 100 mm |
*Power Box Not Included.
Installation Notes
- Designed exclusively for dry Finnish sauna operation.
- Requires a compatible EOS power extension box (sold separately).
- Installation should be performed by a licensed electrician.
- Control panel supports both flush-mounted and surface-mounted installation.
- Maximum recommended control panel distance is 328 ft (100 m).
- Digital temperature sensor with safety limiter must be installed according to EOS specifications.
- Compatible with sauna lighting and ventilation systems through dedicated outputs.
- Firmware updates can be performed using a Micro SD card (not included).
