Product Description

Compact High-Performance Heating for Space-Conscious Sauna Designs

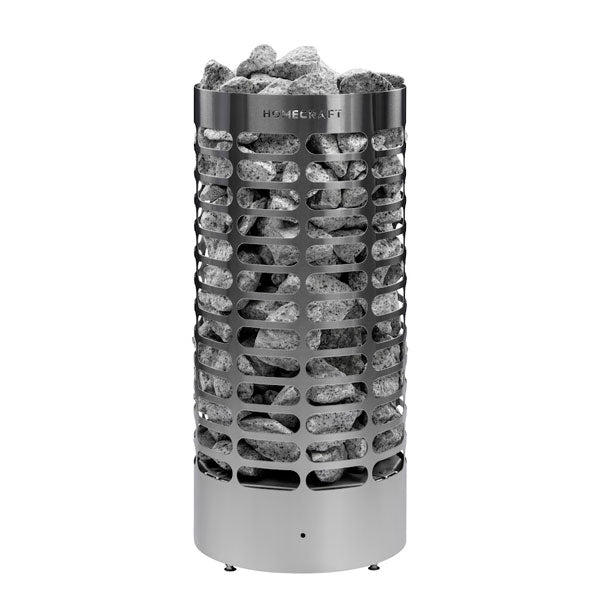

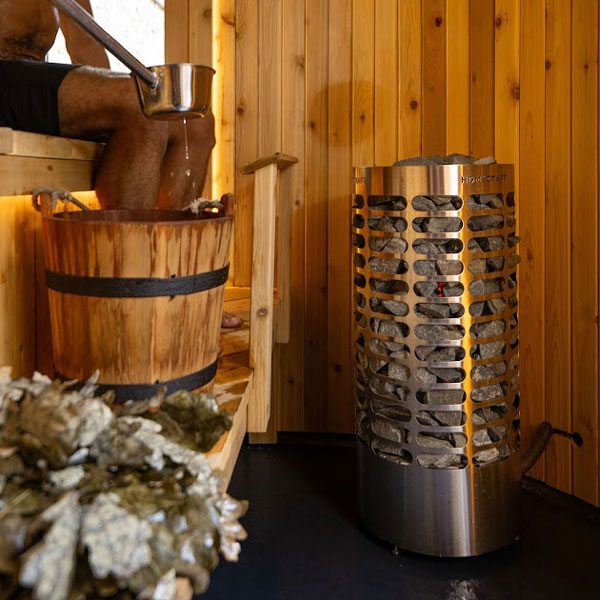

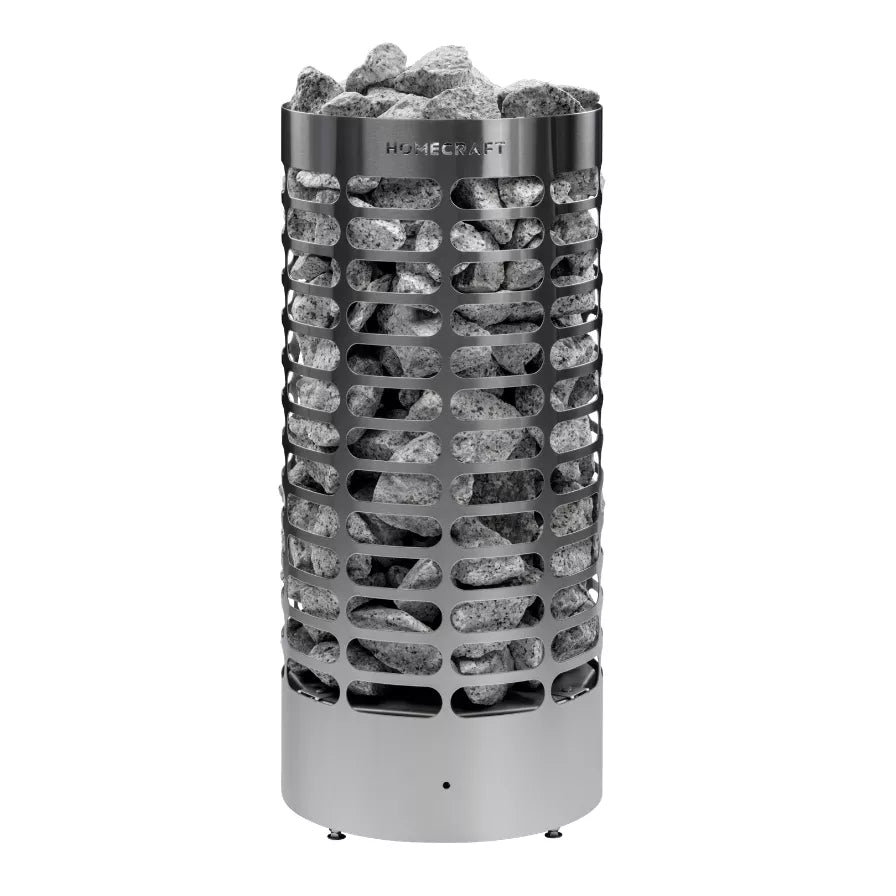

The Apex Mini Sauna Heater delivers powerful heating performance in a compact floor-standing design built for residential saunas where space efficiency matters. Combining the proven engineering of the Apex series with a smaller footprint, this heater provides strong, even heat output without compromising on durability, style, or performance.

Built from premium stainless steel and featuring a protected element chamber for optimized airflow, the Apex Mini is engineered for faster heat-up times, enhanced reliability, and abundant löyly. Its sleek tower profile integrates easily into modern sauna layouts while maintaining high-capacity rock storage for consistent heat delivery.

Key Features

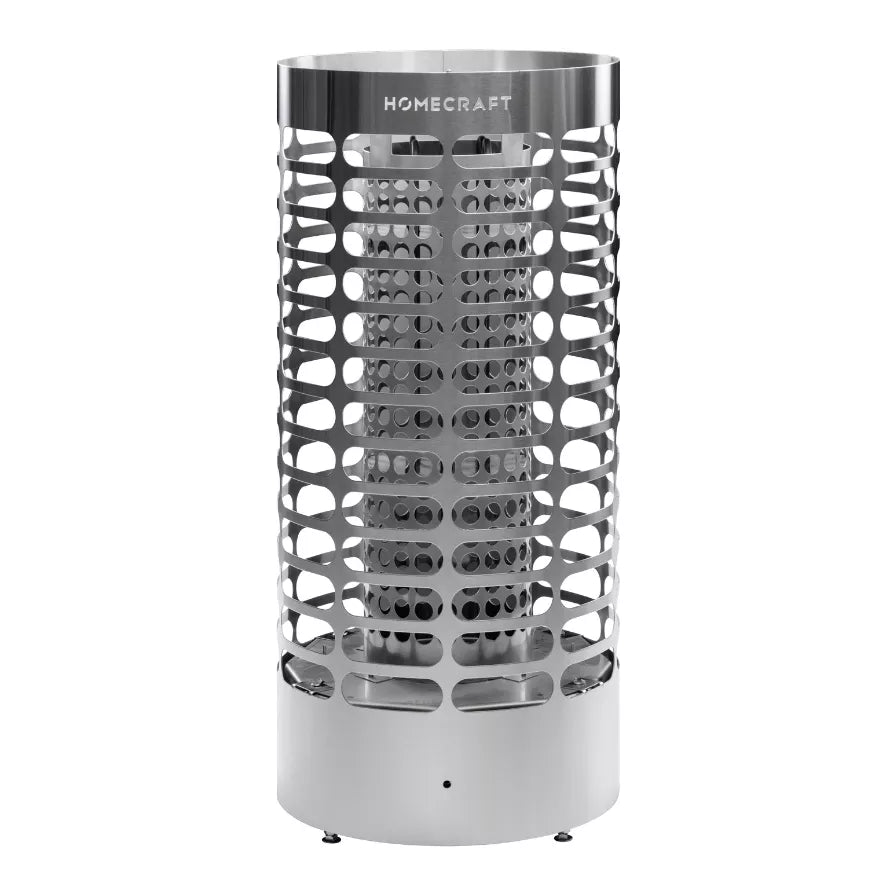

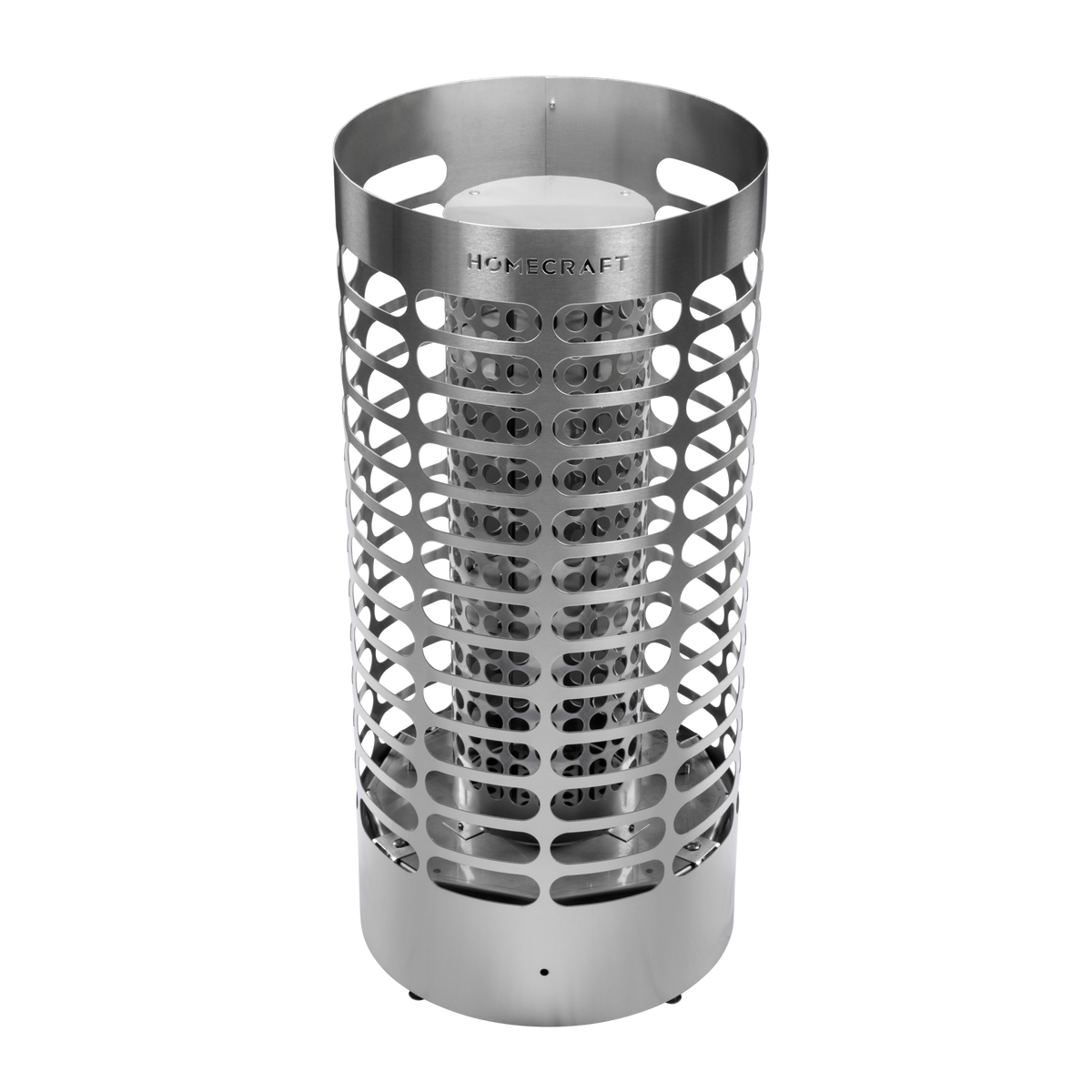

  • Compact Tower Design: Space-efficient footprint ideal for residential sauna layouts.

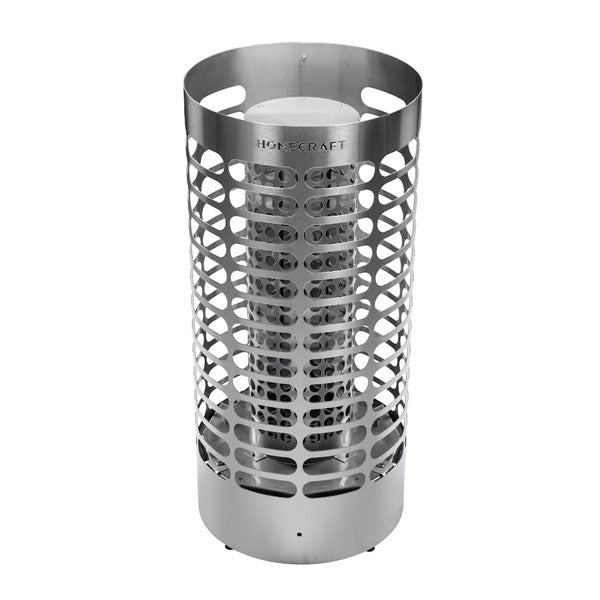

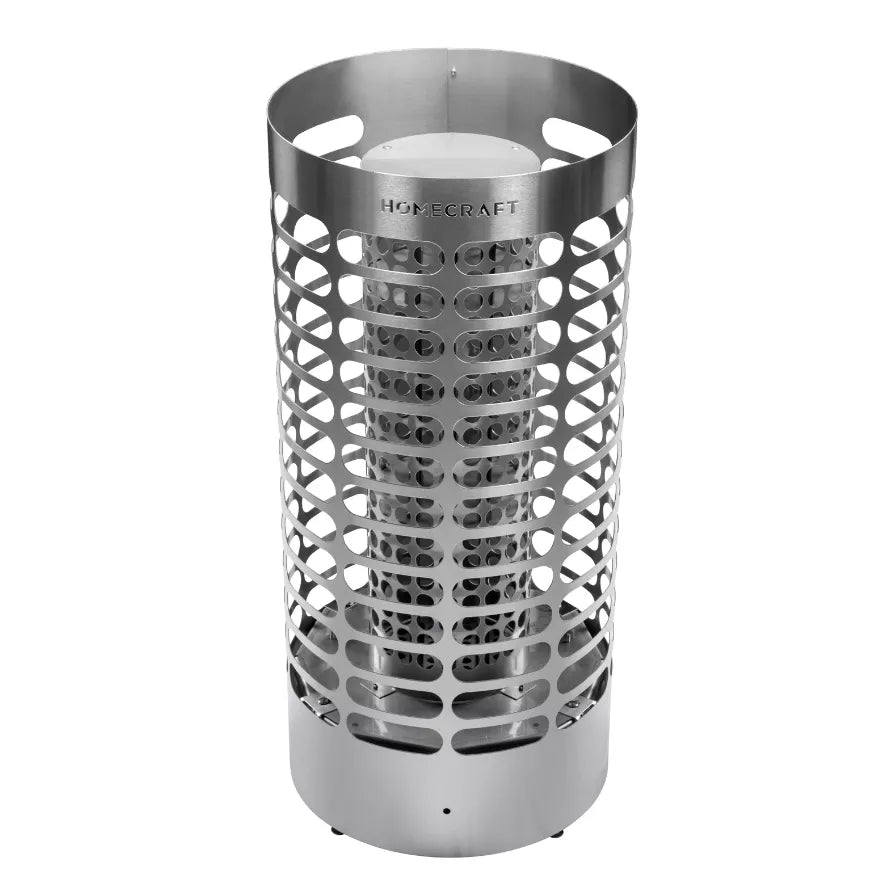

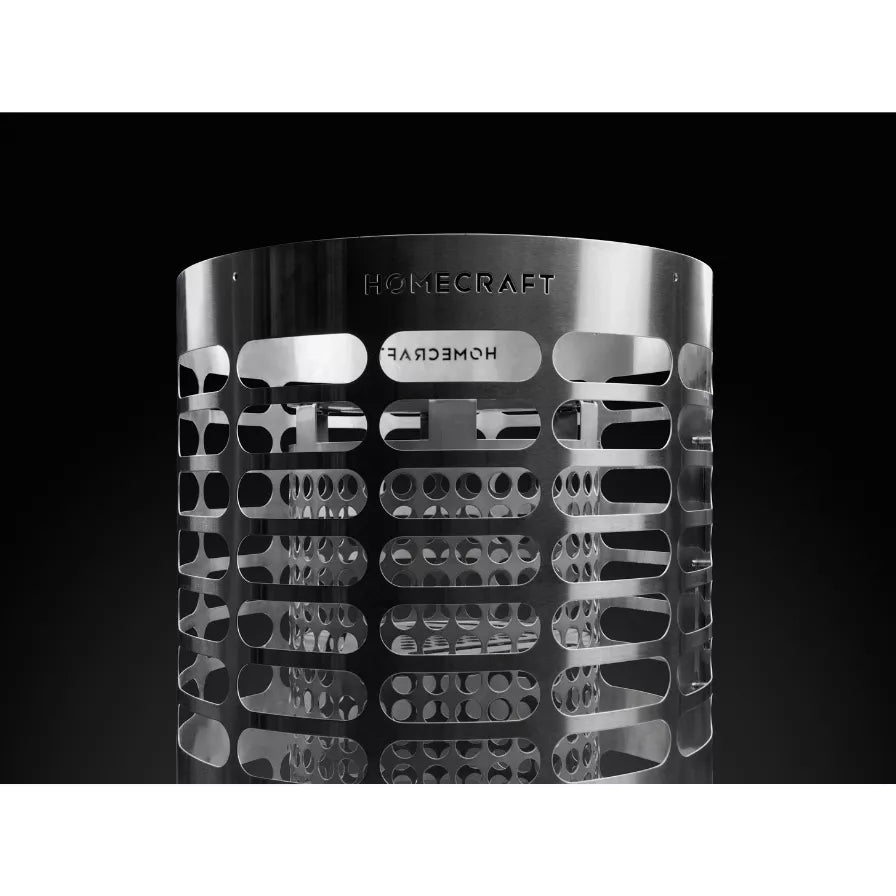

  • Protected Element Chamber: Advanced airflow system supports faster heating and longer heater life.

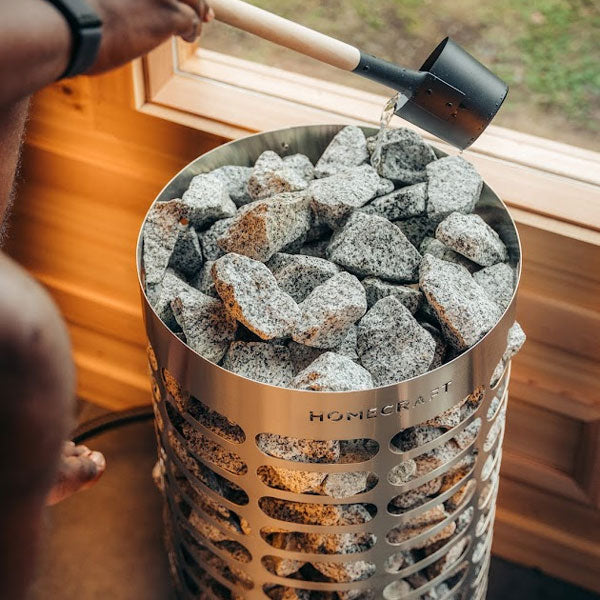

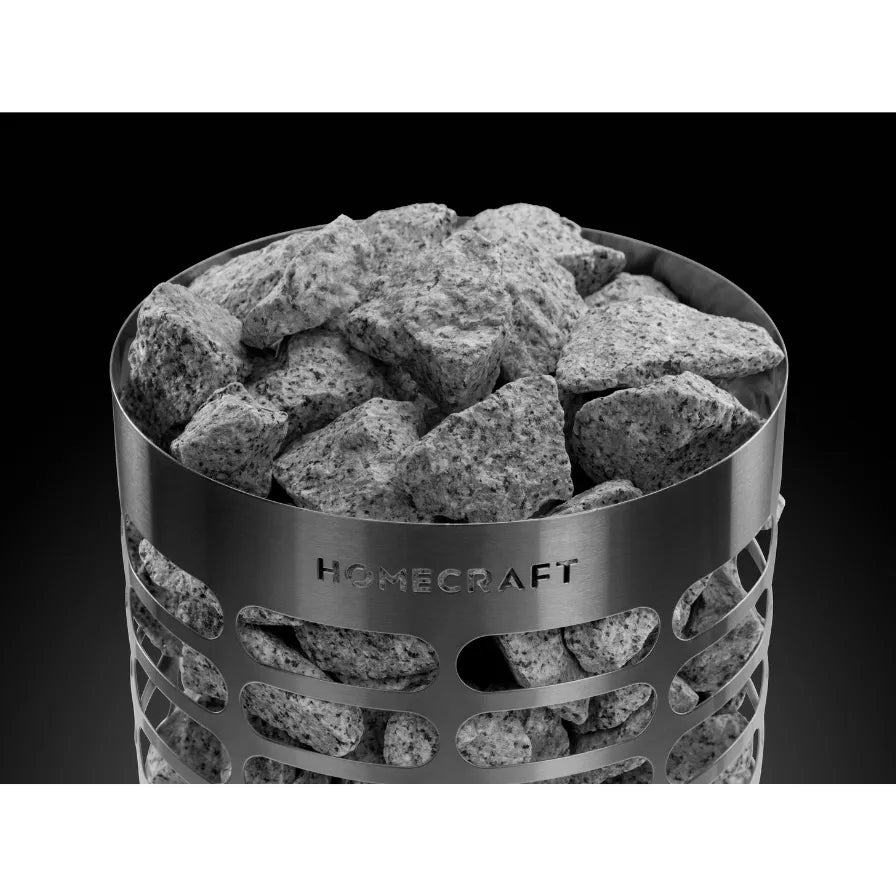

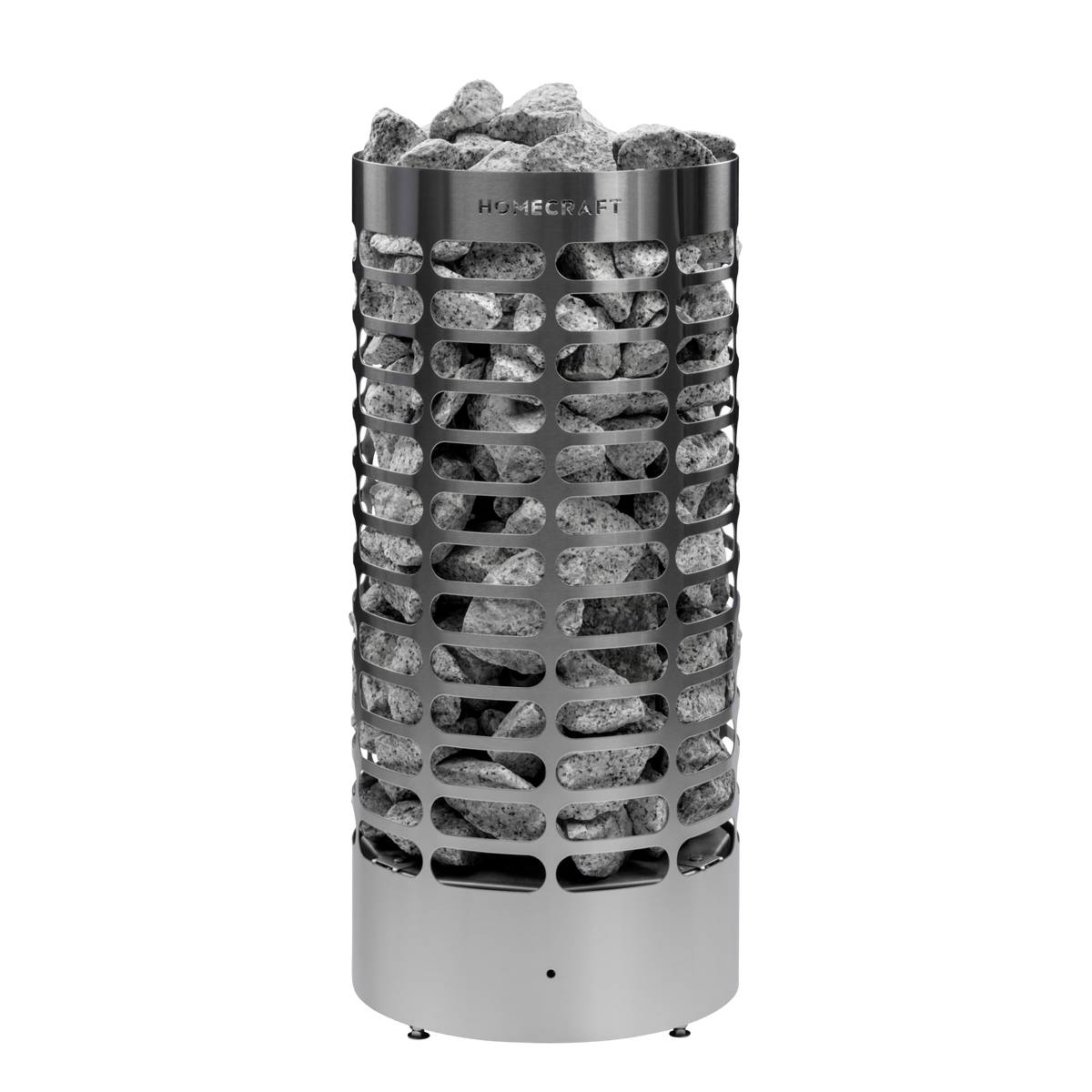

  • High Stone Capacity: Holds 5 boxes of Homecraft rocks for strong and consistent löyly.
  • Premium Stainless Steel Construction: Provides durability with a modern, architectural appearance.
  • Powerful Even Heat Output: Delivers reliable sauna performance in compact spaces.
  • Canadian Manufacturing: Built in British Columbia using 100% stainless steel construction.
  • Flexible Controller Compatibility: Compatible with indoor and outdoor control systems.
  • Certified Safety Compliance: CSA and UL approved construction.

Specifications

Specification Details
Product Type Electric Sauna Heater
Series Apex Mini
Power Output 9 kW (9000W)
Dimensions 14" × 32"
Installation Type Floor Standing
Construction Material 100% Stainless Steel
Rock Capacity 5 Boxes of Homecraft Rocks (35 lb each)
Heating Technology Protected Element Chamber with Advanced Airflow System
Recommended Circuit Breaker 50 Amp (Check Local Code Requirements)

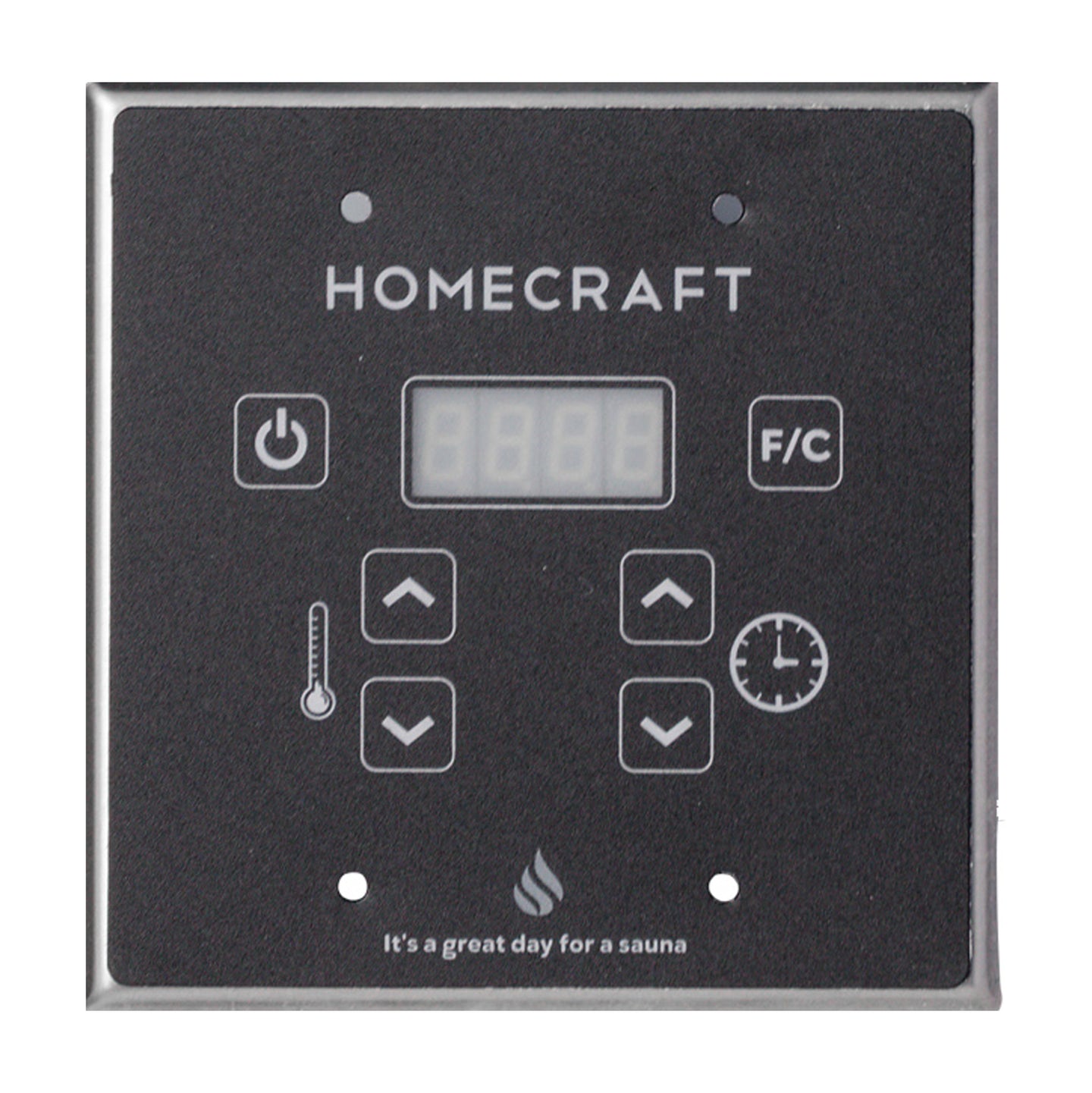

Controller Compatibility TKE2-2 (Indoor), TKEO2-2 (Outdoor)
Certification CSA / UL Approved
Country of Manufacture Canada (British Columbia)
Warranty 2-Year Manufacturer Guarantee


Recommended Sauna Room Size

Heater Output Recommended Room Size
6 kW 200–325 cu ft
7.5 kW 250–370 cu ft
9 kW 350–450 cu ft

Sizing Note: Non-insulated rooms or rooms with large glass surfaces may require adjusted heater sizing.

Download Resources

Homecraft Apex Mini 6kw
Homecraft Apex Mini 7.5kw
Homecraft Apex Mini 9kw
