EOS Invisio Midi Underbench Freestanding Sauna Heater

SKU 14-947543
$8,058.00
$5,641.00
$8,058.00
$5,641.00

Product Description

EOS Invisio Midi Freestanding Sauna Heater

The EOS Gracil W Sauna Heater brings the elegant styling and performance of the Gracil series into a wall-mounted configuration. With its slim profile and minimal wall clearance requirements, the Gracil W maximizes usable floor space while delivering the authentic heat and steam expected from a premium Finnish sauna heater.

Finished in anthracite pearl effect with a brushed stainless steel top, the Gracil W enhances modern sauna interiors with understated sophistication. An integrated debris collection tray helps maintain a cleaner sauna environment, while the generous stone capacity provides consistent heat and satisfying löyly.

Key Features

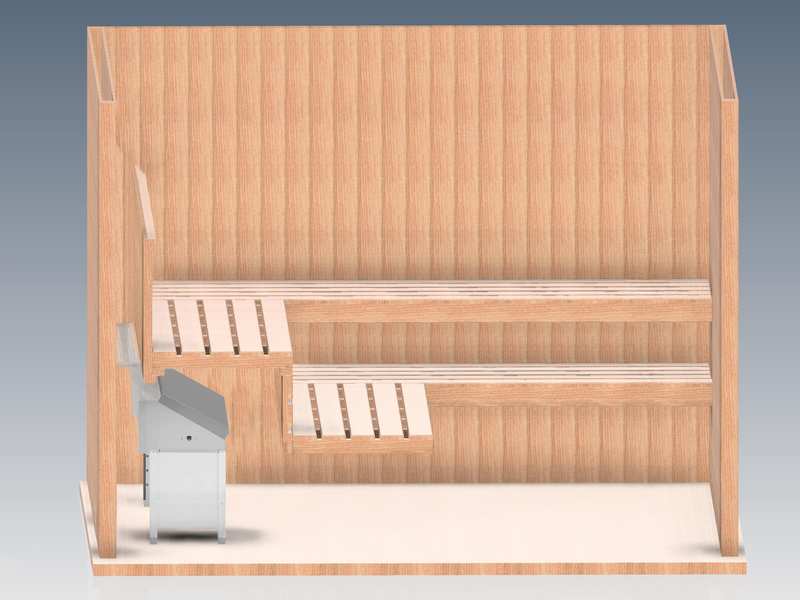

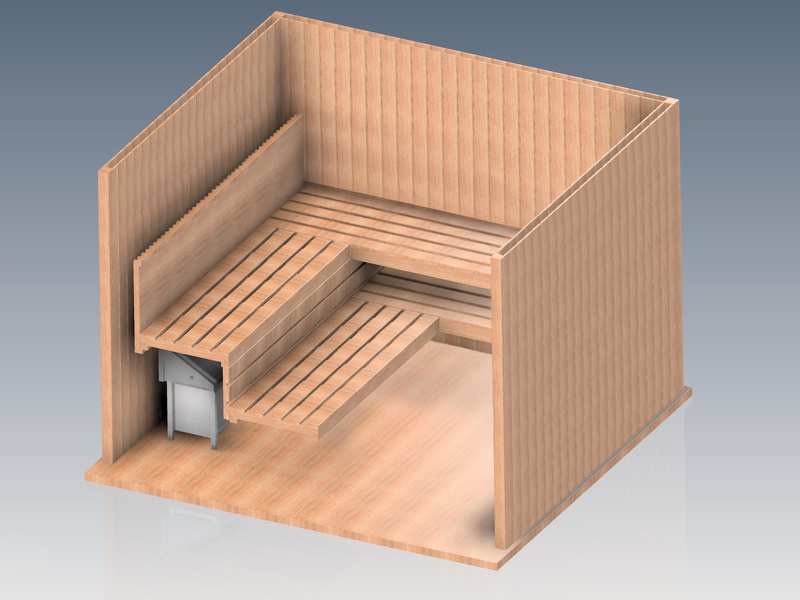

  • Hidden Under-Bench Installation: Designed to mount beneath sauna benches behind a partition wall, maximizing interior space and maintaining a clean, modern appearance.
  • Premium Finnish Sauna Performance: Engineered for traditional dry saunas, delivering efficient heat and authentic steam for residential or commercial use.
  • Traditional Aufguss Experience: Includes a stainless steel water funnel and silicone hose, allowing classic water infusions even with the heater concealed from view.
  • Enhanced User Safety: Hidden placement minimizes the risk of accidental contact, making the sauna safer and more comfortable.
  • Space-Saving Design: Requires only a 4" (10 cm) partition wall, freeing up valuable bench and floor space inside the sauna.
  • Optimized Heat Distribution: Heating elements are separated from the stones for improved airflow, faster heat-up times, and easier servicing.
  • Adjustable Height Construction: Height-adjustable design simplifies installation and adapts to different bench configurations.
  • Integrated Safety Grill: Included protective grill helps prevent objects from falling onto the heater.
  • Service-Friendly Design: Easy access to heating elements simplifies maintenance and long-term ownership.

What's Included

  • EOS Invisio Midi Sauna Heater
  • Safety Grill
  • Stainless Steel Water Funnel
  • Silicone Water Infusion Tube
  • Adjustable Height Supports
  • Installation Hardware
  • User Manual

Note: Sauna stones, control unit, and power button are sold separately.

    Specifications

    Specification Details
    Product Name EOS Invisio Midi Sauna Heater
    Installation Type Concealed Under-Bench / Freestanding
    Available Power Options 6kW, 9kW, 12kW
    Electrical Connection 240V 2PH / 208V 3PH AC 60Hz
    Application Residential & Commercial Finnish Saunas
    Stone Capacity 20 kg / 44 lbs
    Stones Included No
    Control Unit Included No
    Power Button Included No
    Water Infusion Kit Included Yes
    Safety Grill Included Yes
    Adjustable Height Yes
    Origin Germany

    Dimensions

    Measurement Size
    Height (Adjustable) 71–77 cm (2.3–2.5 ft)
    Width 116 cm (3.8 ft)
    Depth 38 cm (1.2 ft)
    Minimum Partition Wall Gap 10 cm (4 in.)

    Recommended Sauna Room Size

    Heater Output Recommended Sauna Room Size
    6.0kW 3.2–4.5 m² × 1.9 m (34.4–48.4 sq ft × 6.2 ft)
    9.0kW 4.7–7.4 m² × 1.9 m (50.5–79.7 sq ft × 6.2 ft)
    12.0kW 7.4–9.5 m² × 1.9 m (79.7–102.3 sq ft × 6.2 ft)

    Technical Specifications by Model

    Output Weight (Without Stones) Min. Air Inlet & Outlet Size Stone Capacity
    6.0kW 24 kg / 53 lbs 35 × 5 cm (1.2 × 0.2 ft) 20 kg / 44 lbs
    9.0kW 25 kg / 55 lbs 35 × 6 cm (1.2 × 0.2 ft) 20 kg / 44 lbs
    12.0kW 27 kg / 60 lbs 35 × 7 cm (1.2 × 0.3 ft) 20 kg / 44 lbs

    Installation Notes

    • Designed for concealed installation beneath sauna benches.
    • Requires a partition wall with approximately 4" (10 cm) clearance.
    • Height can be adjusted from 71–77 cm (2.3–2.5 ft) to accommodate various bench layouts.
    • Requires a compatible EOS control unit and power button (sold separately).
    • Sauna stones are optional and must be purchased separately.
    • Traditional water infusions are performed using the included stainless steel funnel and silicone tube.
    • Professional installation by a licensed electrician is recommended.
    • Follow all local electrical codes and EOS installation guidelines.

    Downloads

    ***REQUIRED FOR INSTALLATION

    ⚠️ This sauna heater requires a compatible control panel and matching power box. Both are sold separately.

    Sauna Stones

    Included Accessories

    • Stainless steel water funnel
    • Silicone water infusion hose
    • Safety grill

    Required Control Components (Sold Separately)

    Choose ONE Control Panel

    AND

    Choose ONE Compatible Power Box
