Harvia SP80 Spirit Series Digitally Controlled 8kW Electric Sauna Heater 240V | 1-Phase | HSPE80U1M

SKU HSPE80U1M
$1,777.00
$1,777.00

Product Description

Modern Scandinavian Sauna Heating with Smart Safety and Fast Heat Performance

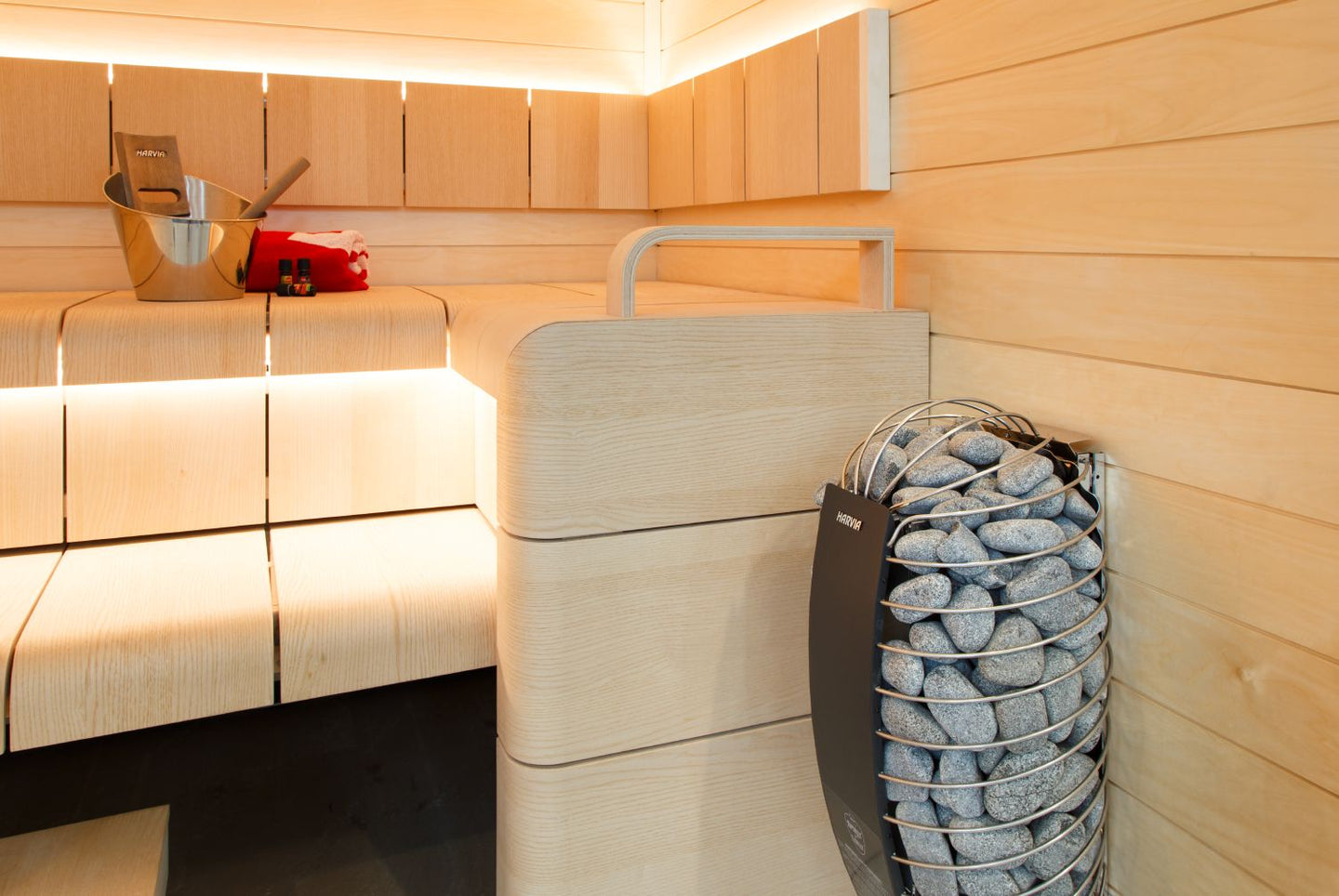

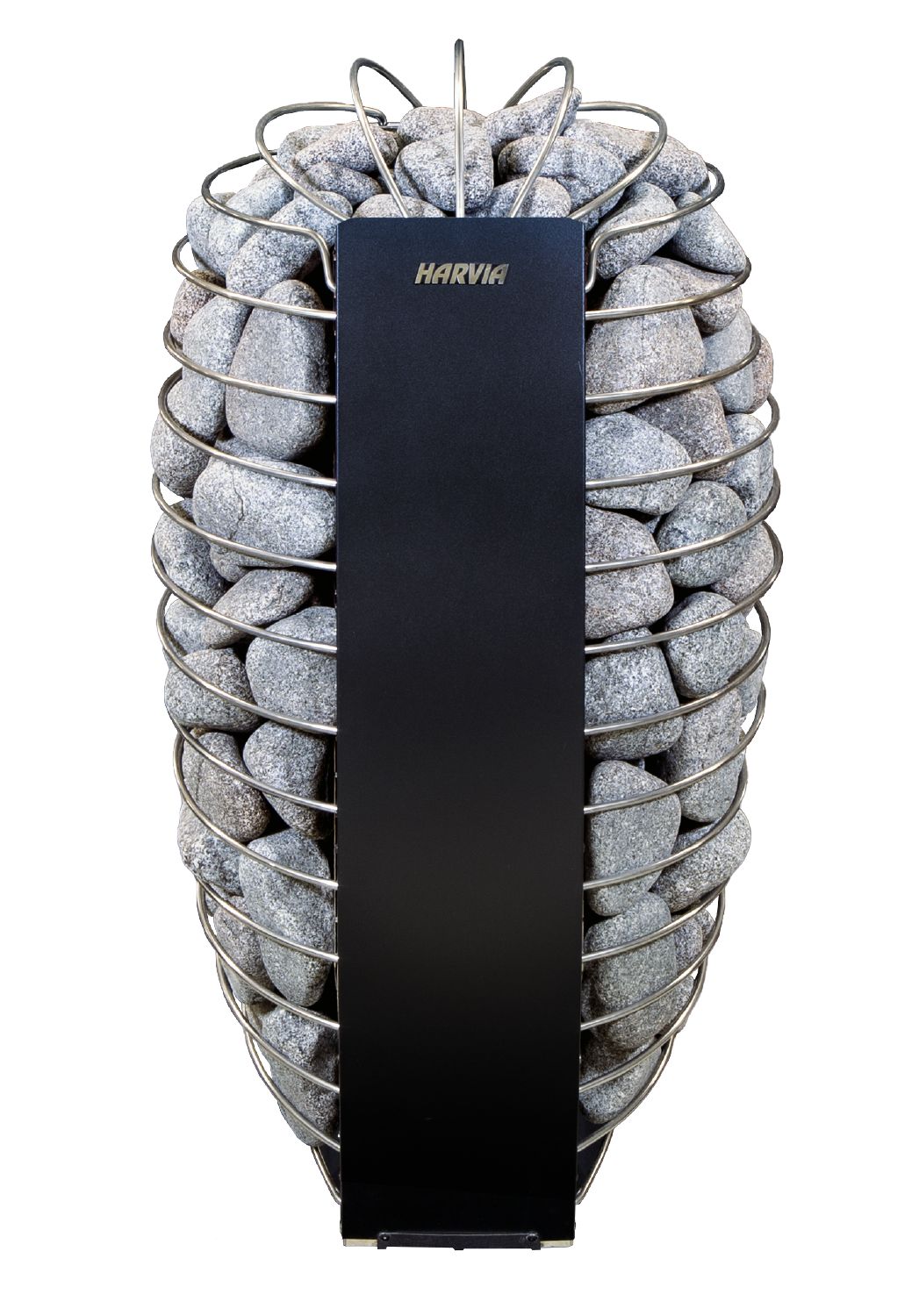

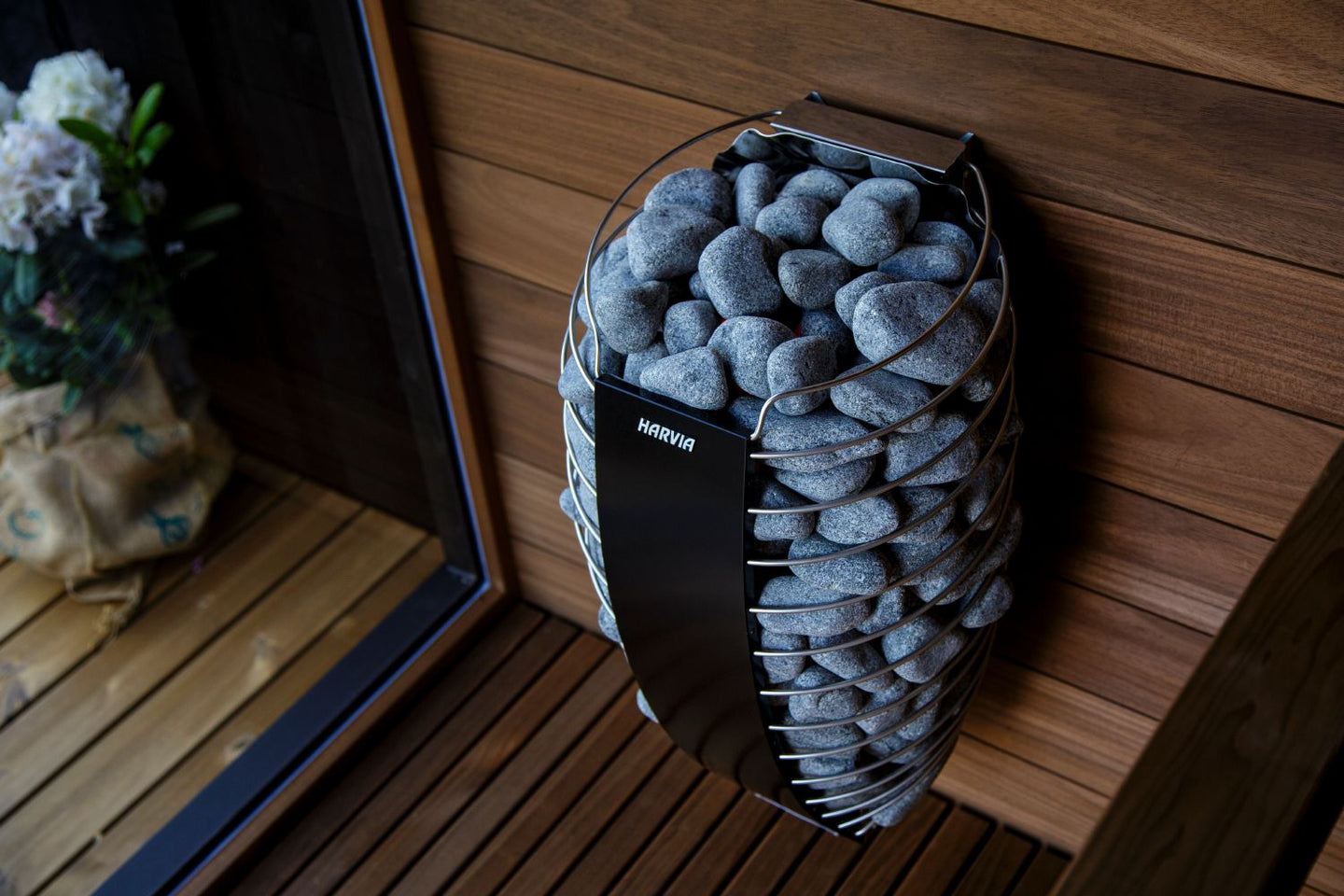

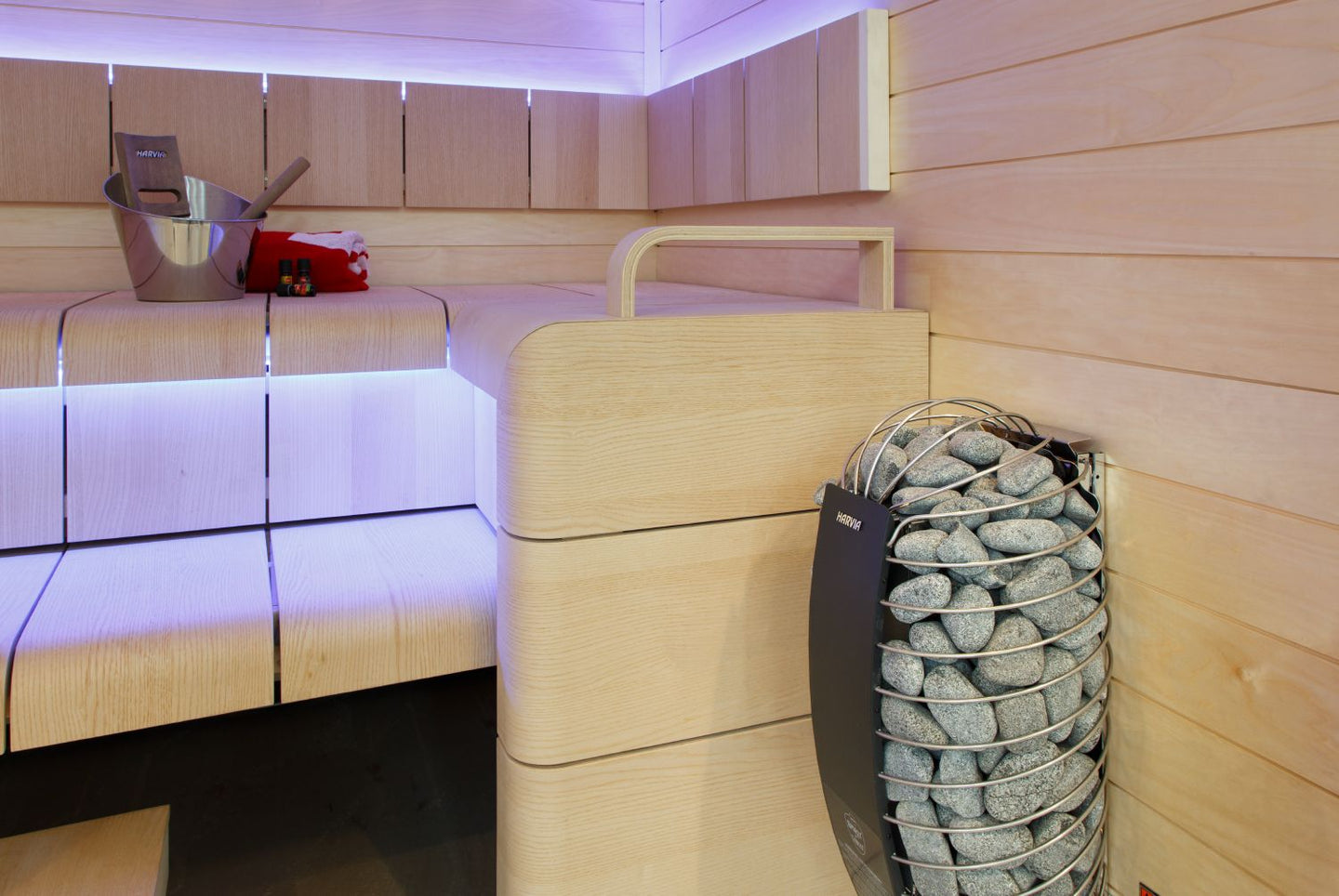

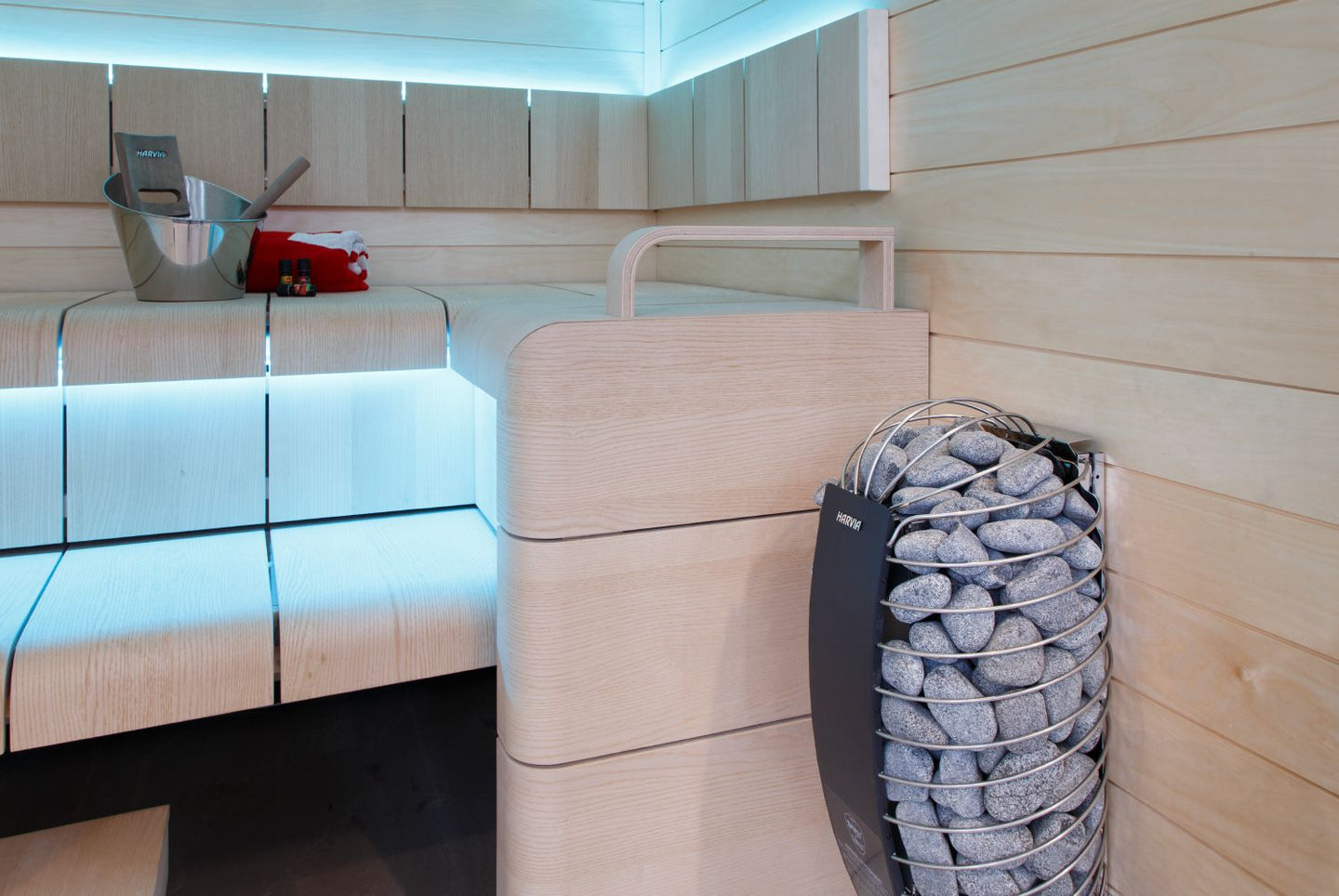

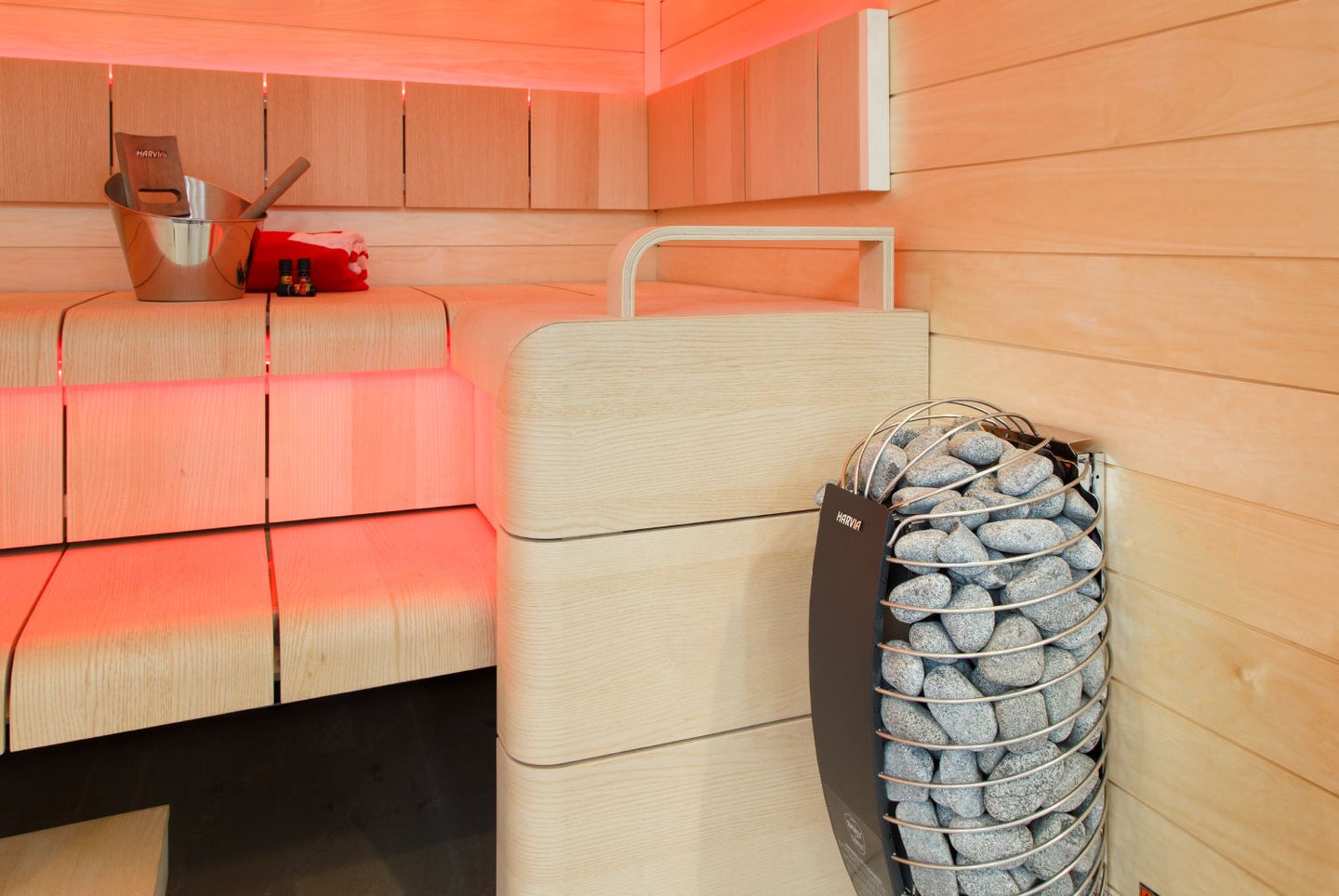

The Harvia Spirit SP80E 8kW sauna heater combines elegant Finnish design with advanced safety technology to create a premium sauna experience. Designed for sauna rooms from 177 to 431 cubic feet, this stylish heater features smooth curved lines and a rounded stone presentation that blends naturally into modern sauna interiors while delivering fast and efficient heating performance.

Engineered with integrated dual safety sensors, the Spirit Series is designed for dependable and secure operation. One sensor monitors heater performance while another tracks sauna room temperature to help prevent overheating. Built-in safety protection also prevents the heater from activating when objects are placed on top, supporting safer remote operation with compatible Wi-Fi controls.

Compatible with Harvia Xenio controls and Xenio Wi-Fi packages sold separately, the Spirit SP80E combines premium Finnish craftsmanship with modern control functionality.

Key Features

  • Elegant Scandinavian Design: Curved styling and rounded stone presentation create a refined modern appearance.

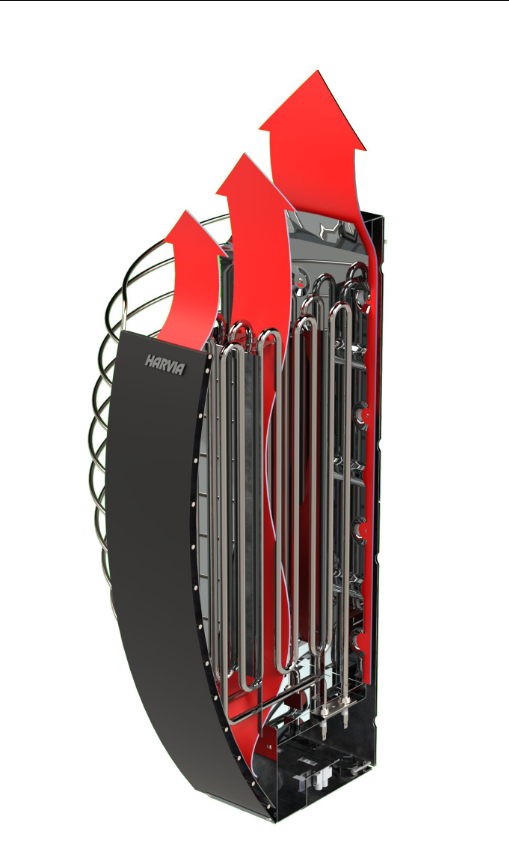

  • Fast Heating Performance: Designed to quickly heat sauna spaces for a comfortable experience.

  • Dual Integrated Safety Sensors: Monitors heater operation and sauna temperature for enhanced safety.

  • Remote Start Safety Protection: Prevents operation if objects are detected on top of the heater.

  • Xenio Control Compatible: Supports operation with Harvia Xenio control systems.

  • Wi-Fi Expansion Compatible: Supports remote functionality with optional Xenio Wi-Fi accessories.

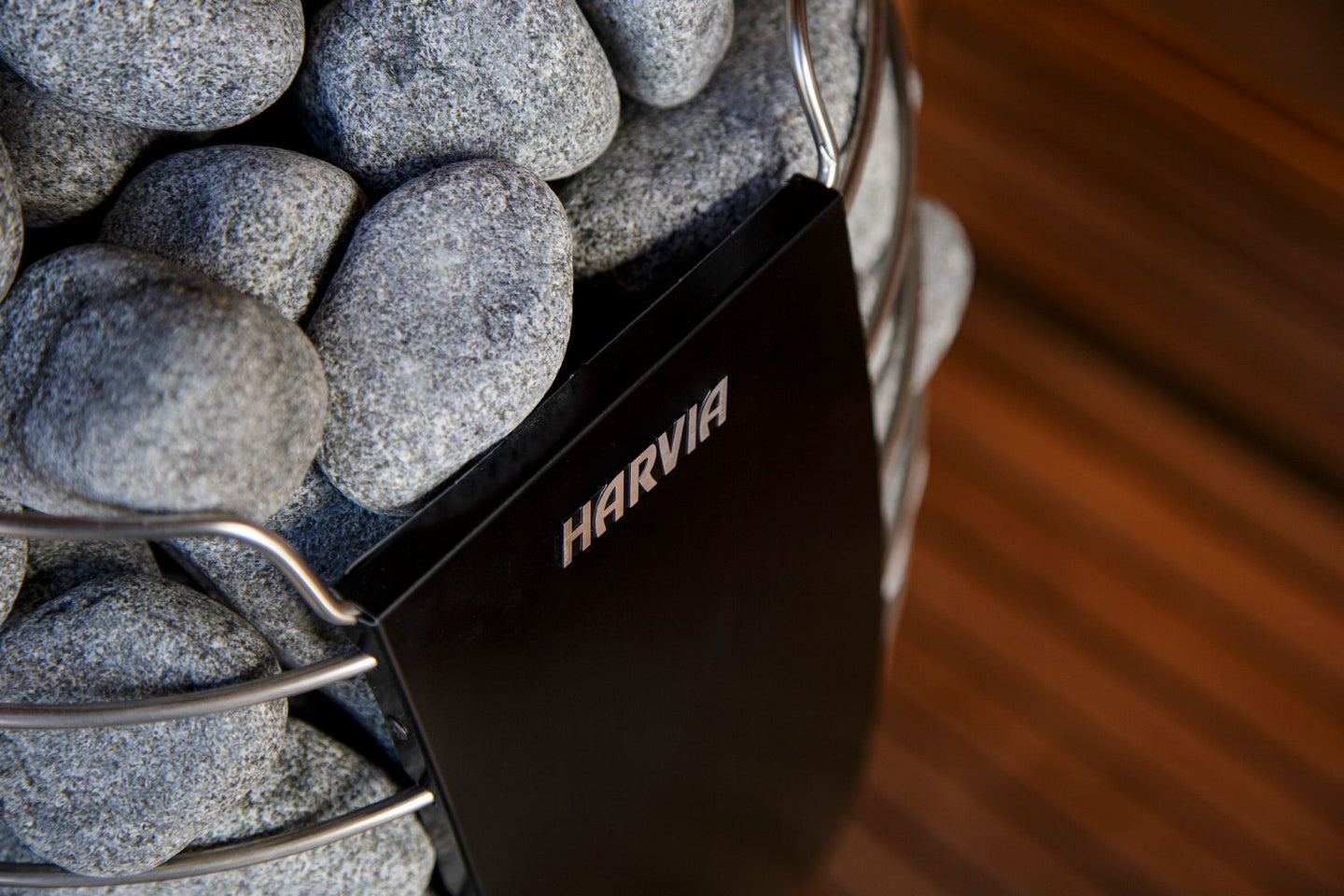

  • Large Stone Capacity: Supports balanced heat retention and a traditional sauna experience.

  • Premium Finnish Construction: Designed and manufactured for dependable long-term performance.

Specifications

Model: HSPE80U1M / SP80E
Power Output: 8kW
Fuel Type: Electric
Sauna Room Capacity: 177–431 cu. ft.
Voltage: 240V
Phase: Single Phase (1PH)
Control Compatibility: Harvia Xenio Controls (Sold Separately)
Wi-Fi Compatibility: Xenio Wi-Fi Package (Sold Separately)
Stone Capacity Requirement: Minimum 110 lbs
Stone Requirement: 4 Boxes R-991

Recommended stone variety: round Olivine diabase 5-10 cm (product number R-991, sold separately). 4 x R-991

Product contents: Heater, safety device on top of the heater, wall-mounting bracket, user manual and safety regulations

Product certificate: Electric Dry-Bath Heaters UL 875

Heater Weight with Sauna Stones: 140 lbs
Country of Manufacture: Finland

Specifications

Width: 15"
Depth: 13.1"
Height: 29.5"

Product Attachments

Harvia Spirit Installation Manual
Operator’s Manual
Harvia Heater Requirements and Information
Harvia Heater Comparison
Sauna Heater Sizing Calculator
Warranty Information

Distances
Model HSPE80U1M HSPE60U1M HSPE90U1M
Safety distance front (combustible materials) 3.2 in 3.2 in 3.2 in
safety distance to the side wall (combustible materials) 3.2 in 3.2 in 3.2 in
Safety distance right side (combustible materials) 3.2 in 3.2 in 3.2 in
Safety distance left side (combustible materials) 3.2 in 3.2 in 3.2 in
Safety distance (Ceiling) 35.5 in 35.5 in 35.5 in
Safety distance (Floor 1ph) (depends on connections and therefore from output, star/delta) - 4 in -
min. height for assembly 6.56 ft - 6.56 ft
Room min. recommended volume 177 ft³ 177 ft³ 6251 ft³
Room max. recommended volume 431 ft³ 294 ft³ 17445 ft³



Electrical
Model HSPE80U1M HSPE60U1M HSPE90U1M
IP Class (like: IPX4) IPX4 IPX4 IPX4
Electrical Frequency 50/60 Hz 50/60 Hz 50/60 Hz
Electrical group options 240VAC, 1ph, 60Hz 240VAC, 1ph, 60Hz 240VAC, 1ph, 60Hz



Logistics
Model HSPE80U1M HSPE60U1M HSPE90U1M
EAN 6417659037112 6417659037105 6417659044813
Customs tariff number EU 85162999 85162999 85162999
ETIM number EC001884 EC001884 EC001884
Content of delivery (listed)
Fastening kitHeaterInstallation and operating instructions
Fastening kitHeaterInstallation and operating instructions
Fastening kitHeaterInstallation and operating instructions
Sales unit pcs pcs pcs
Packaging materials Cardboard Cardboard Cardboard
Package height 30.9 in 30.9 in 30.9 in
Package width 16.5 in 16.5 in 16.5 in
Package depth 14.8 in 14.8 in 14.8 in
Gross weight 33.5 lbs 33.5 lbs 35 lbs
Cardboard weight 4.8 lbs 4.8 lbs 4.9 lbs
Sales lot 2 Gross weight 231.1 lbs 223.1 lbs 231.1 lbs
Sales lot 3 Gross weight 462.2 lbs 446.3 lbs 462.2 lbs



***REQUIRED
Stones: R-991 (offered in dropdown)
Boxes of stones needed: 4
Xenio Control Unit Needed: CX45-U1-U3-XW (offered in dropdown)
Fenix Control Upgrade Option: FX45-U1-U3-XC
