Harvia

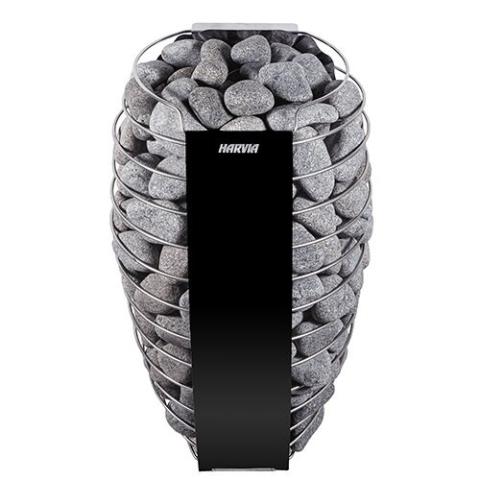

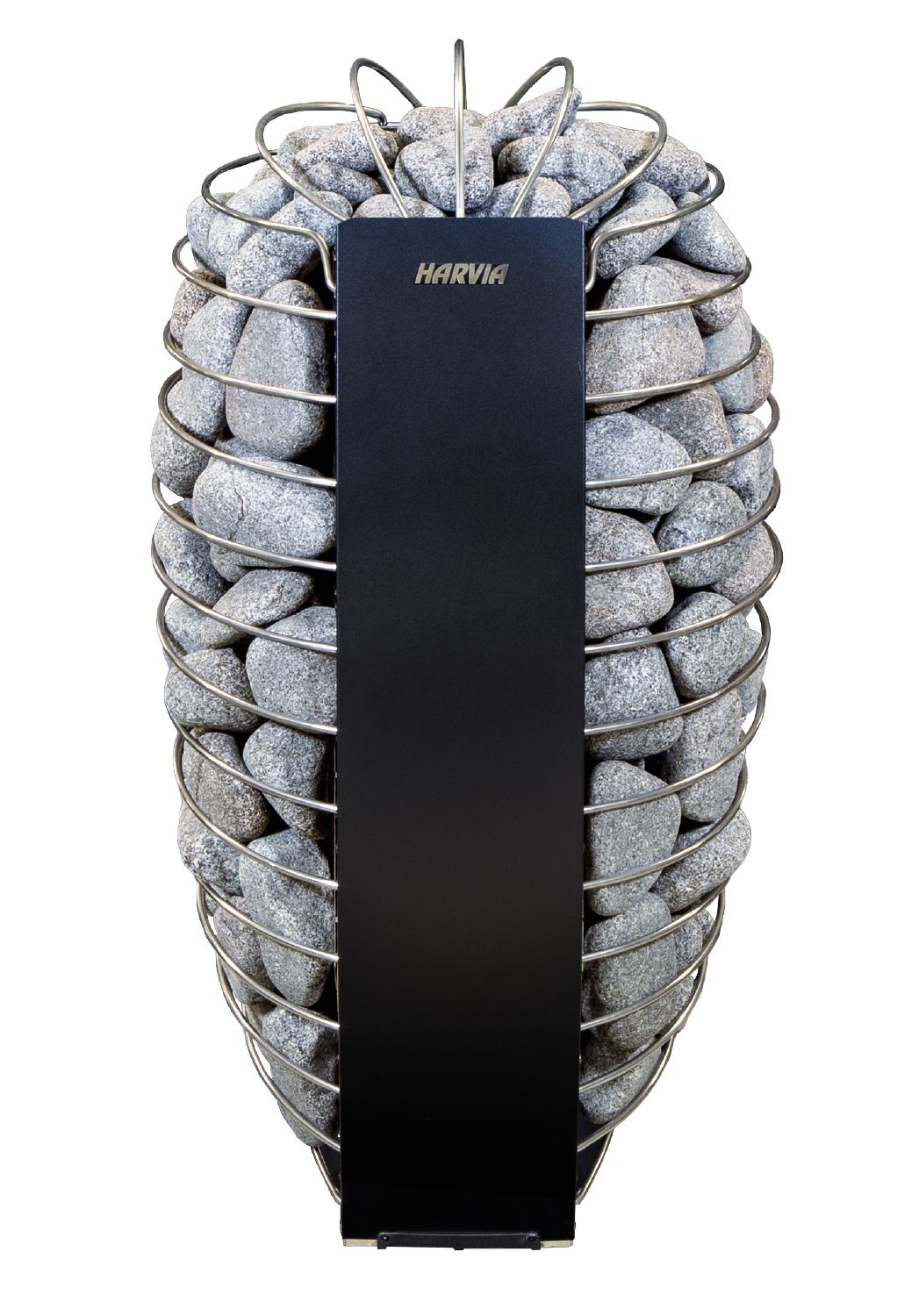

Harvia SP60 Spirit Series 6kW Digitally Controlled Electric Sauna Heater 240VAC | 1-Phase | HSPE60U1M

SKU HSPE60U1M
$1,715.00
$1,715.00

Product Description

Modern Scandinavian Sauna Heating with Smart Safety and Fast Heat Performance

The Harvia Spirit SP60E 6kW sauna heater combines elegant Finnish design with advanced safety technology to create a premium sauna experience. Designed for sauna rooms from 177 to 294 cubic feet, this stylish heater features soft curved lines and a stone-focused design that blends naturally into modern sauna interiors while delivering quick and efficient heating performance.

Engineered with integrated dual safety sensors, the Spirit Series is designed for safe and dependable operation. One sensor monitors the heater while another tracks sauna room temperature to help prevent overheating. Built-in protection also prevents activation if objects are placed on top of the heater, making remote operation with compatible Wi-Fi controls safer and more convenient.

Compatible with Harvia Xenio controls and Xenio Wi-Fi packages sold separately, the Spirit SP60E delivers modern functionality with premium Finnish craftsmanship.

Key Features

  • Elegant Scandinavian Design: Curved styling and rounded stone presentation create a refined modern appearance.

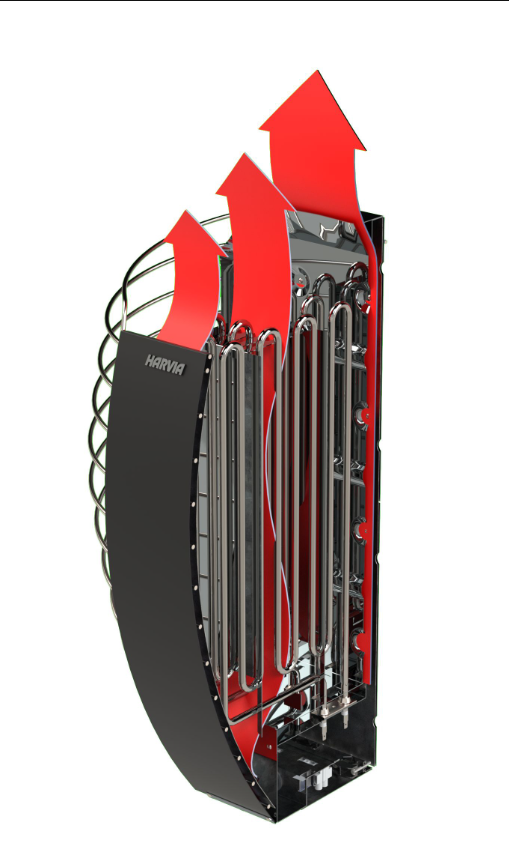

  • Fast Heating Performance: Designed to heat sauna spaces quickly and efficiently.

  • Dual Integrated Safety Sensors: Monitors heater operation and sauna temperature for added protection.

  • Remote Start Safety Protection: Prevents operation if items are detected on top of the heater.

  • Xenio Control Compatible: Supports operation with Harvia Xenio controls and Wi-Fi functionality.

  • Large Stone Capacity: Supports balanced heat retention and a traditional sauna experience.

  • Premium Finnish Construction: Designed and manufactured for dependable long-term use.

  • Wi-Fi Expansion Compatible: Supports remote functionality with optional Xenio Wi-Fi accessories.

Specifications

Model: HSPE60U1M / SP60E
Power Output: 6kW
Fuel Type: Electric
Sauna Room Capacity: 177–294 cu. ft.
Voltage: 240V
Phase: Single Phase (1PH)
Control Compatibility: Harvia Xenio Controls (Sold Separately)
Wi-Fi Compatibility: Xenio Wi-Fi Package (Sold Separately)
Stone Capacity Requirement: Minimum 110 lbs /  / 50kg (4 pcs x R-991)
Stone Requirement: 4 Boxes R-991

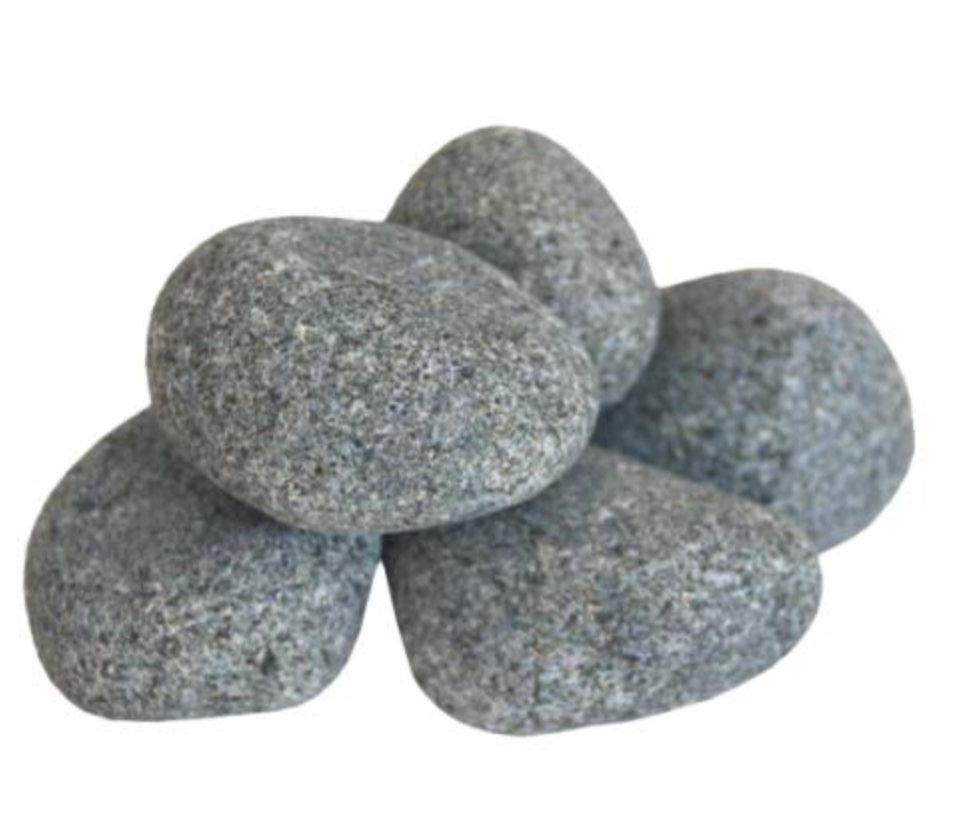

Recommended stone variety: round Olivine diabase 5-10 cm (product number R-991, sold separately). 4 x R-991

Product contents: Heater, safety device on top of the heater, wall-mounting bracket, user manual and safety regulations

Product certificate: Electric Dry-Bath Heaters UL 875


Heater Weight with Sauna Stones: 140 lbs
Country of Manufacture: Finland

Dimensions:
Width: 15"
Depth: 13.1"
Height: 29.5"

Product Attachments

Harvia Spirit Installation Manual
Operator’s Manual
Harvia Heater Requirements and Information
Harvia Heater Comparison
Sauna Heater Sizing Calculator
Warranty Information

Distances
Model HSPE60U1M HSPE80U1M HSPE90U1M
Safety distance front (combustible materials) 3.2 in 3.2 in 3.2 in
safety distance to the side wall (combustible materials) 3.2 in 3.2 in 3.2 in
Safety distance right side (combustible materials) 3.2 in 3.2 in 3.2 in
Safety distance left side (combustible materials) 3.2 in 3.2 in 3.2 in
Safety distance (Ceiling) 35.5 in 35.5 in 35.5 in
Safety distance (Floor 1ph) (depends on connections and therefore from output, star/delta) 4 in - -
min. height for assembly - 6.56 ft 6.56 ft
Room min. recommended volume 177 ft³ 177 ft³ 6251 ft³
Room max. recommended volume 294 ft³ 431 ft³ 17445 ft³



Electrical
Model HSPE60U1M HSPE80U1M HSPE90U1M
IP Class (like: IPX4) IPX4 IPX4 IPX4
Electrical Frequency 50/60 Hz 50/60 Hz 50/60 Hz
Electrical group options 240VAC, 1ph, 60Hz 240VAC, 1ph, 60Hz 240VAC, 1ph, 60Hz



Logistics
Model HSPE60U1M HSPE80U1M HSPE90U1M
EAN 6417659037105 6417659037112 6417659044813
Customs tariff number EU 85162999 85162999 85162999
ETIM number EC001884 EC001884 EC001884
Content of delivery (listed)
Fastening kitHeaterInstallation and operating instructions
Fastening kitHeaterInstallation and operating instructions
Fastening kitHeaterInstallation and operating instructions
Sales unit pcs pcs pcs
Packaging materials Cardboard Cardboard Cardboard
Package height 30.9 in 30.9 in 30.9 in
Package width 16.5 in 16.5 in 16.5 in
Package depth 14.8 in 14.8 in 14.8 in
Gross weight 33.5 lbs 33.5 lbs 35 lbs
Cardboard weight 4.8 lbs 4.8 lbs 4.9 lbs
Sales lot 2 Gross weight 223.1 lbs 231.1 lbs 231.1 lbs
Sales lot 3 Gross weight 446.3 lbs 462.2 lbs 462.2 lbs

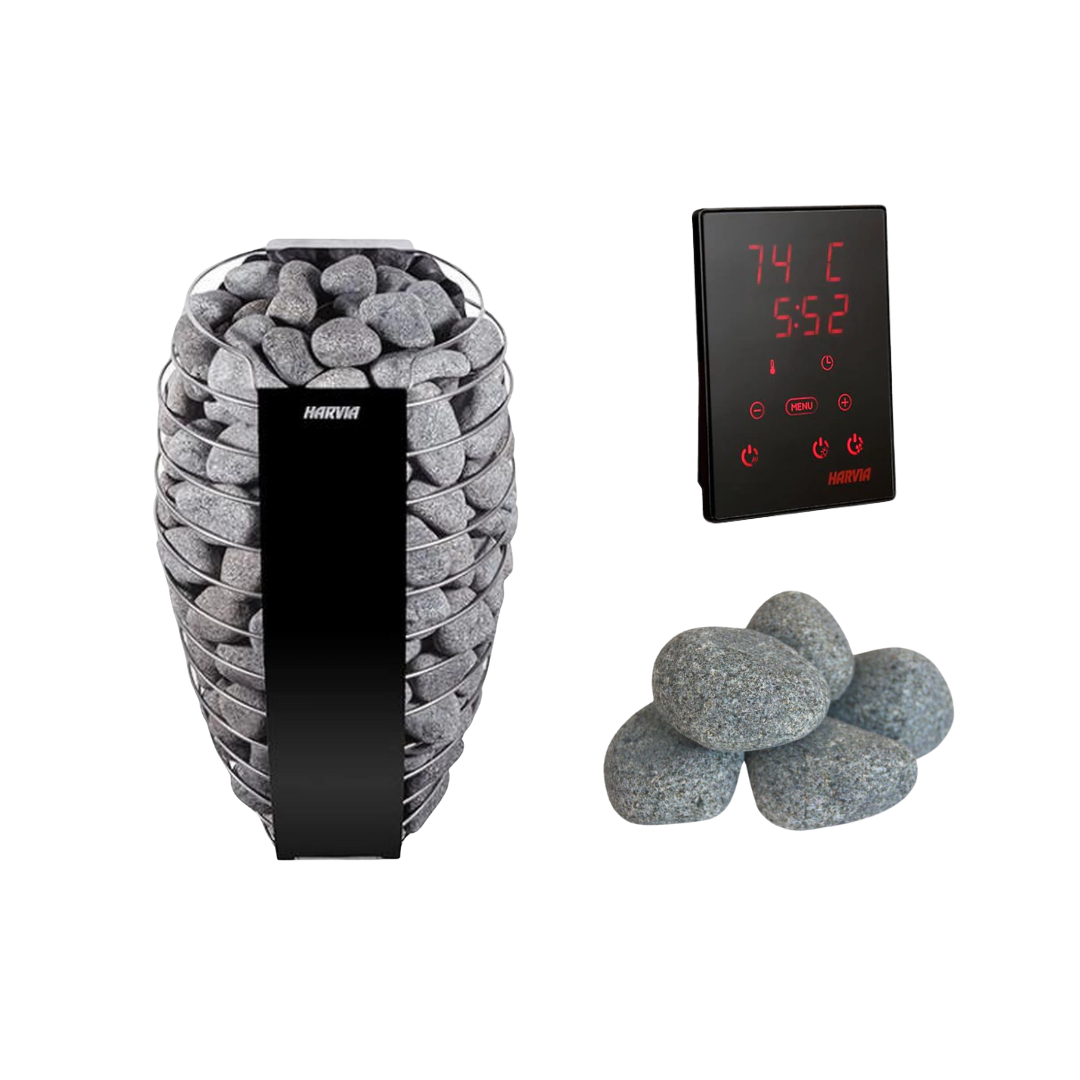

***REQUIRED
Stones: R-991 (offered in dropdown)
Boxes of stones needed: 4

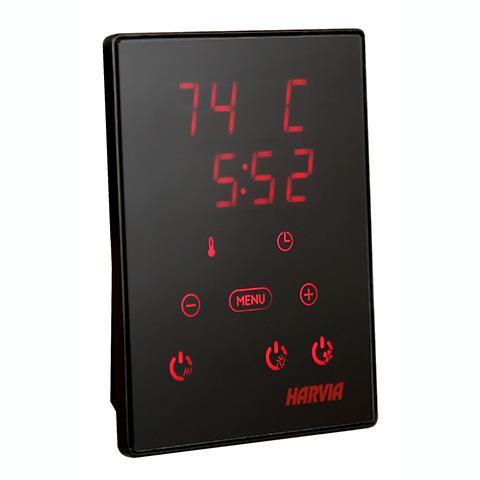

Xenio Control Unit Needed: CX30-U1-U3-XW (offered in dropdown)
Fenix Control Upgrade Option: FX30-U1-U3-XC
