Harvia SP90 Digitally Controlled Spirit Heater 9kw | 240V | 1-Phase | HSPE90U1M

SKU HSPE90U1M
$1,930.00
$1,930.00

Product Description



Premium Finnish Sauna Heating with Smart Wi-Fi Control and Balanced Heat Performance

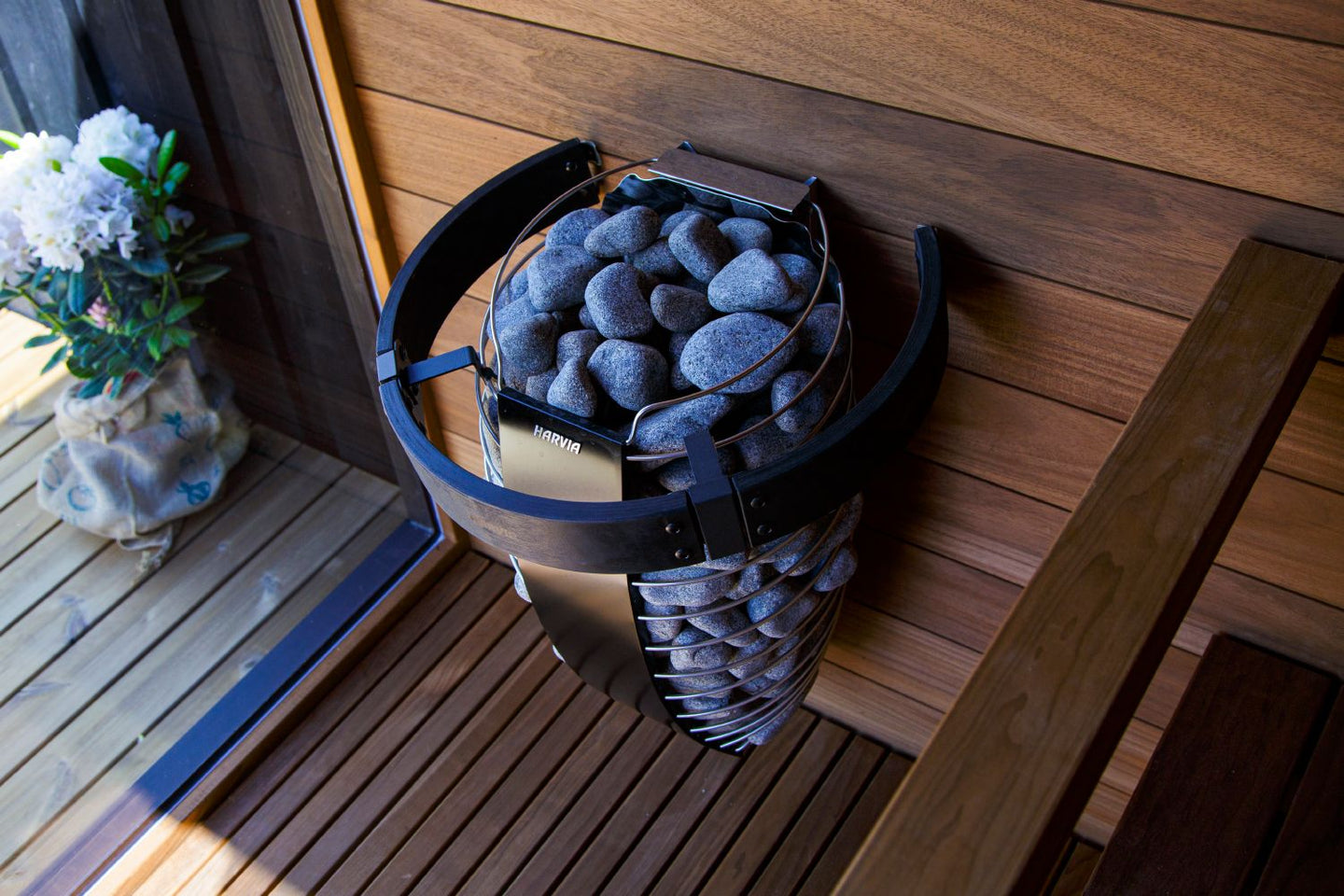

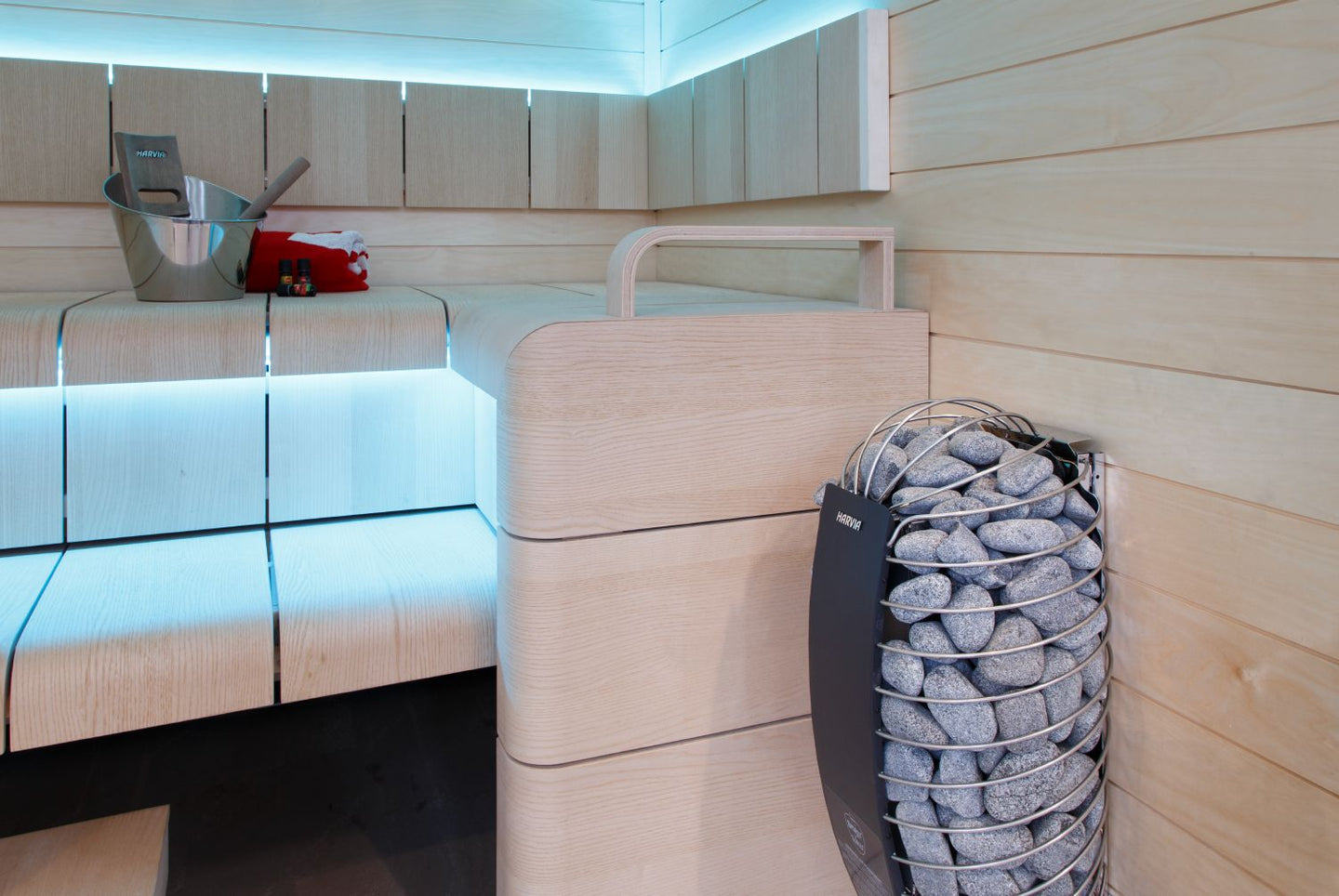

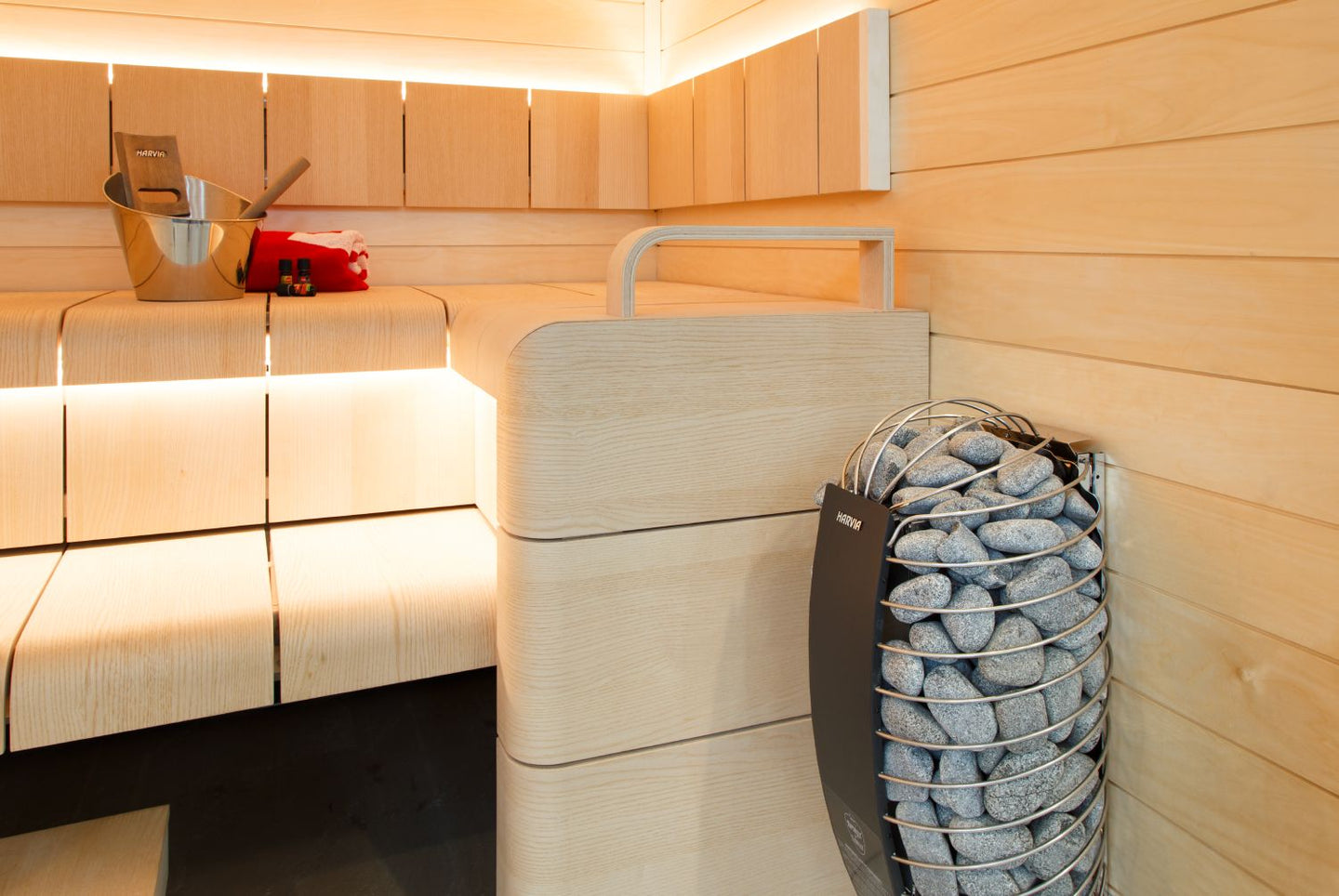

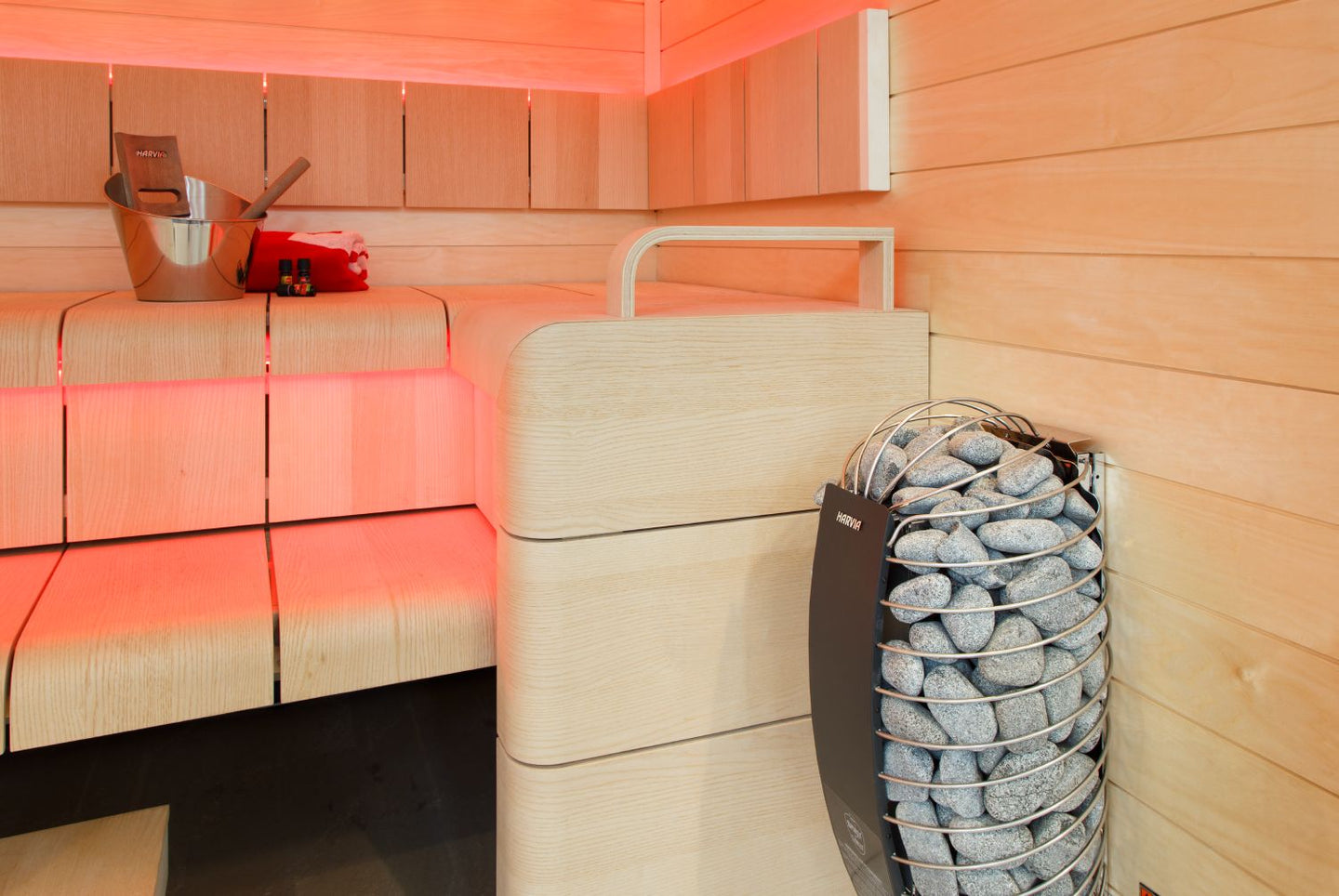

The Harvia Spirit SP90E 9kW sauna heater combines modern Finnish craftsmanship with advanced technology to create a refined and comfortable sauna experience. Designed with elegant curved styling and rounded stone presentation, this premium heater delivers soft and even heat while enhancing the visual appeal of contemporary sauna interiors.

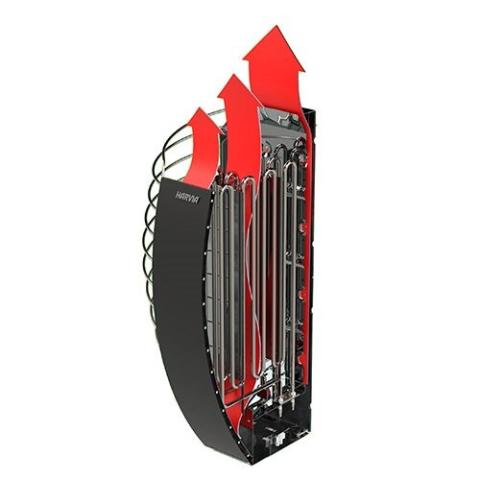

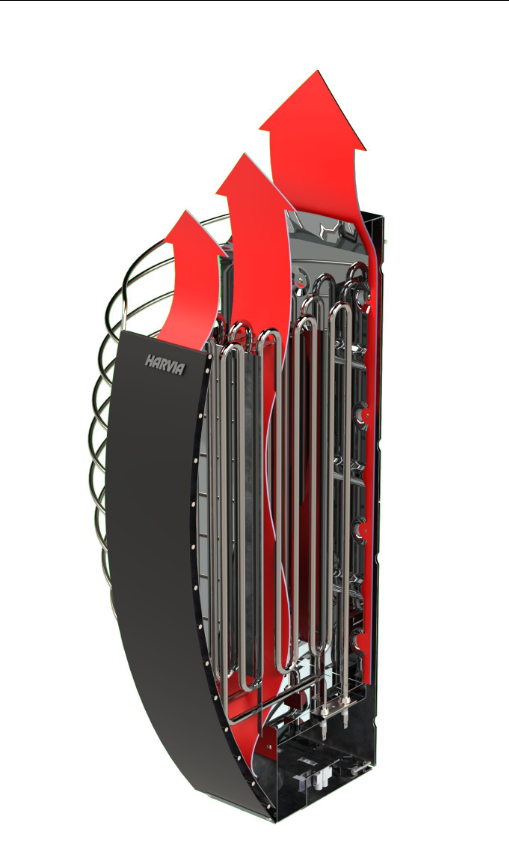

Engineered with integrated air ventilation channels, the Spirit Series promotes balanced heat distribution while helping cool surrounding wall structures. Improved airflow through the heating elements supports a more consistent sauna temperature and creates a smoother heating experience. Compatible with Harvia Xenio Wi-Fi controls and the MyHarvia mobile app, the Spirit heater supports modern remote operation and customizable sauna settings.

Built for performance, safety, and convenience, the Spirit SP90E delivers a connected sauna experience with dependable Finnish design.

Key Features

  • Elegant Scandinavian Design: Curved styling and rounded stone presentation create a modern sauna centerpiece.

  • Integrated Air Ventilation Channels: Promotes balanced heat distribution and improved airflow.

  • Even Heat Performance: Designed to create a more consistent sauna temperature throughout the room.

  • Wi-Fi Compatible Operation: Supports remote functionality through Xenio Wi-Fi controls and MyHarvia integration.

  • Mobile App Compatibility: Control temperature, lighting, and ventilation through supported systems.

  • Large Stone Capacity: Supports balanced heat retention and gentle steam performance.

  • Soft Steam Experience: Designed to deliver a smooth and comfortable sauna atmosphere.

  • Designed and Manufactured in Finland: Engineered for dependable quality and long-term performance.

Key Features

Model: HSPE90U1M / SP90E
Power Output: 9.0kW
Voltage: 240V
Phase: Single Phase (1PH)
Fuel Type: Electric
Control Compatibility: Harvia Xenio Wi-Fi Controls (Sold Separately)
Mobile App Compatibility: MyHarvia App
Stone Capacity Requirement: Minimum 110 lbs
Stone Requirement: 4 Boxes R-991

Recommended stone variety: round Olivine diabase 5-10 cm (product number R-991, sold separately). 4 x R-991

Product contents: Heater, safety device on top of the heater, wall-mounting bracket, user manual and safety regulations

Product certificate: Electric Dry-Bath Heaters UL 875

Country of Manufacture: Finland

Product Attachments

Data Sheet
Harvia Spirit Installation Manual
Operator’s Manual
Harvia Heater Requirements and Information
Harvia Heater Comparison
Sauna Heater Sizing Calculator
Warranty Information

Measurements
Model HSPE90U1M HSPE60U1M HSPE80U1M
Height 29.5 in 29.5 in 29.5 in
Width 15 in 15 in 15 in
Depth 13.1 in 13.1 in 13.1 in
Stone sizes Ø5–10 cm Ø5–10 cm Ø5–10 cm



Distances
Model HSPE90U1M HSPE60U1M HSPE80U1M
Safety distance front (combustible materials) 3.2 in 3.2 in 3.2 in
safety distance to the side wall (combustible materials) 3.2 in 3.2 in 3.2 in
Safety distance right side (combustible materials) 3.2 in 3.2 in 3.2 in
Safety distance left side (combustible materials) 3.2 in 3.2 in 3.2 in
Safety distance (Ceiling) 35.5 in 35.5 in 35.5 in
Safety distance (Floor 1ph) (depends on connections and therefore from output, star/delta) - 4 in -
min. height for assembly 6.56 ft - 6.56 ft
Room min. recommended volume 6251 ft³ 177 ft³ 177 ft³
Room max. recommended volume 17445 ft³ 294 ft³ 431 ft³



Electrical
Model HSPE90U1M HSPE60U1M HSPE80U1M
IP Class (like: IPX4) IPX4 IPX4 IPX4
Electrical Frequency 50/60 Hz 50/60 Hz 50/60 Hz
Electrical group options 240VAC, 1ph, 60Hz 240VAC, 1ph, 60Hz 240VAC, 1ph, 60Hz



Logistics
Model HSPE90U1M HSPE60U1M HSPE80U1M
EAN 6417659044813 6417659037105 6417659037112
Customs tariff number EU 85162999 85162999 85162999
ETIM number EC001884 EC001884 EC001884
Content of delivery (listed)
Fastening kitHeaterInstallation and operating instructions
Fastening kitHeaterInstallation and operating instructions
Fastening kitHeaterInstallation and operating instructions
Sales unit pcs pcs pcs
Packaging materials Cardboard Cardboard Cardboard
Package height 30.9 in 30.9 in 30.9 in
Package width 16.5 in 16.5 in 16.5 in
Package depth 14.8 in 14.8 in 14.8 in
Gross weight 35 lbs 33.5 lbs 33.5 lbs
Cardboard weight 4.9 lbs 4.8 lbs 4.8 lbs
Sales lot 2 Gross weight 231.1 lbs 223.1 lbs 231.1 lbs
Sales lot 3 Gross weight 462.2 lbs 446.3 lbs 462.2 lbs



***REQUIRED
Stones: R-991 (offered in dropdown)
Boxes of stones needed: 4
Xenio Control Unit Needed: CX45-U1-U3-XW (offered in dropdown)
Fenix Control Upgrade Option: FX45-U1-U3-XC
